PLC adjustment CZ purlin making machine for Galvanized Steel C and Z Purlin Roll Forming

Publish Time:2026-03-20 18:00

Modern construction relies on galvanized steel or low carbon steel to create various C and Z purlin types. Our PLC adjustment CZ purlin making machine efficiently processes these materials within the Material thickness 1.0-3.0 mm for both c and z purlin range while adapting to Power 380 v 50 hz 3 phase or as customer requirement. With its flexible production speeds, the PLC adjustment CZ purlin making machine ensures high output and reduced labor costs for large-scale projects.

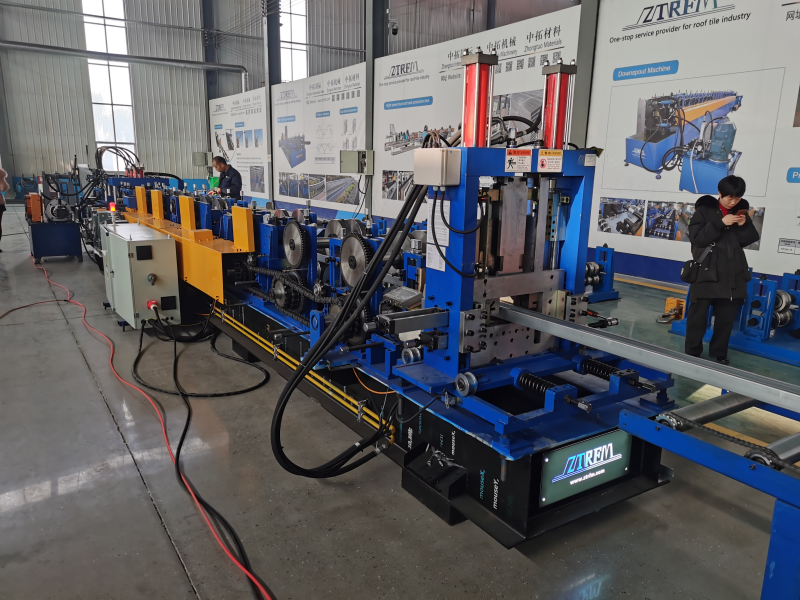

A PLC adjustment CZ purlin making machine displayed in a factory setting, with informational banners on the wall and personnel observing nearby.

Diverse Finished Products Display

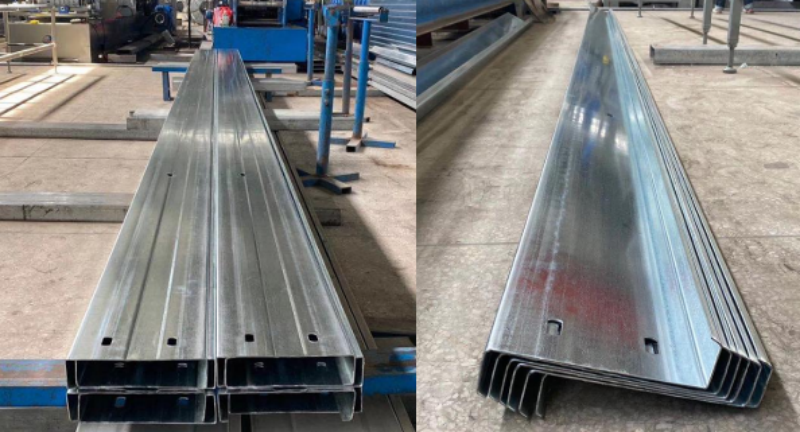

Finished metal purlins produced by a PLC adjustment CZ purlin making machine, shown in two views: stacked and single profile, inside a factory setting.

Workflow

Decoiler- feeding- leveling- punching-forming- cutting- receiving table

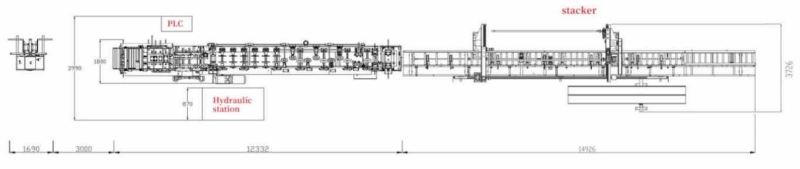

Schematic diagram of the PLC adjustment CZ purlin making machine, showing labeled components including PLC, hydraulic station, and stacker, with dimensional annotations along the production line layout.

Machine components:

Automatic decoiler 1 set; Main roll forming machine (feeding-leveling-punching-forming-cutting) 1 set;

Automatic stacker 1 set; Hydraulic station 1 set; Control computer 1 set; Maintain tools 1 set;

Operation manual 1 book; Spare parts as so on.

Main technical parameters

Power: 380 v 50 hz 3 phase or as customer requirement
Weight of machine: about 15 tons
Material thickness: 1.0-3.0 mm for both c and z purlin
Processing material: galvanized steel or low carbon steel
Machine dimension: about 22m x 2.0 m x 2.0 m
Working speed: 0-32 m per minute without holes punching;0-18 m per minute with holes punching (it depends on the holes quantity)

💡 Why Choose Our UD Profile Packaging Machine?

1. Servo motor drive, more accurate start and stop, faster speed.

2. Intelligent control system, can realize remote monitoring and operation and maintenance.

3. The operation interface uses a notebook instead of an electric control cabinet.

4. With fast input software, USB import can be realized.

5. Dual automatic type change (two modes: button and PLC screen).

6. Unlimited shearing blade and do not need to change the blade frequently.

7. Profile sizes change is quick, normally change time within 5 minutes.

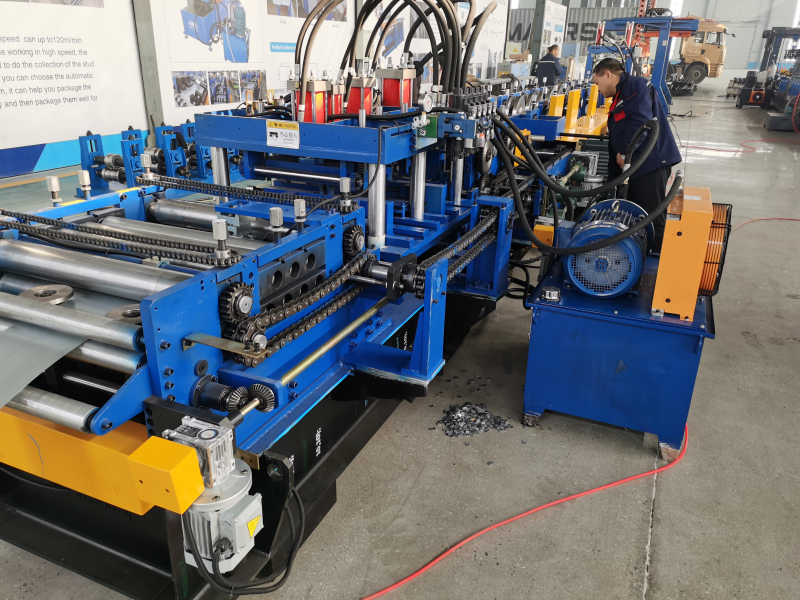

The PLC adjustment CZ purlin making machine shown in an industrial environment, featuring its main structural frame, drive systems, and control interfaces, with a technician present near the operational section.

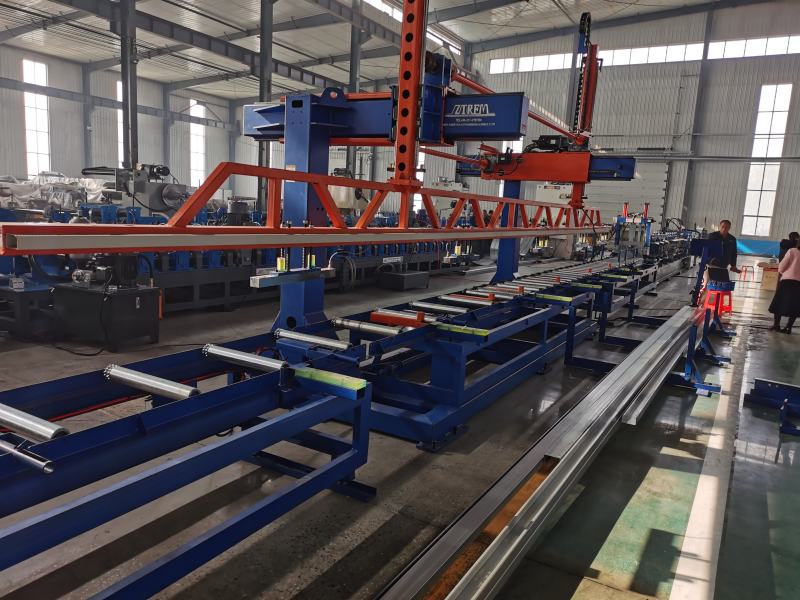

A PLC adjustment CZ purlin making machine displayed in a large industrial hall, featuring an overhead gantry structure, roller conveyors, and finished metal profiles on output tables, with personnel observing nearby.
