Automated Drywall Framing Packaging: UD Profile Machine for Studs & Tracks

Publish Time:2026-03-18 16:39

The UD PROFILE PACKAGING MACHINE combines intuitive single-touch control with a multi-layer alarm architecture to ensure the secure, rational handling of fire-resistant steel framing.

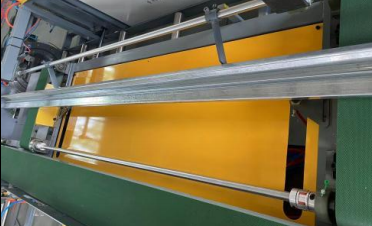

Diverse Finished Products Display

Applications:

- Interior non-load-bearing partitions

- Exterior wall framing (with appropriate sheathing)

- Load-bearing walls (with thicker gauge studs)

- Ceilings and soffits

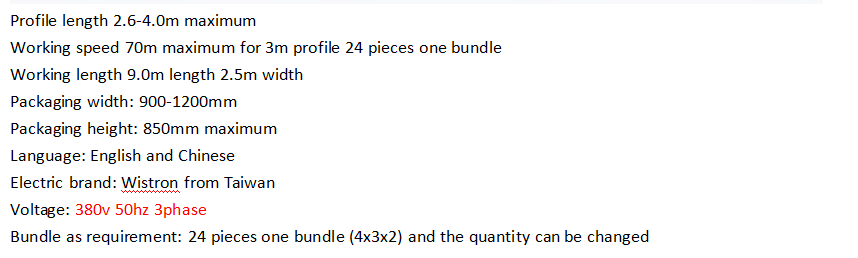

Main technical parameters

Component Introduction

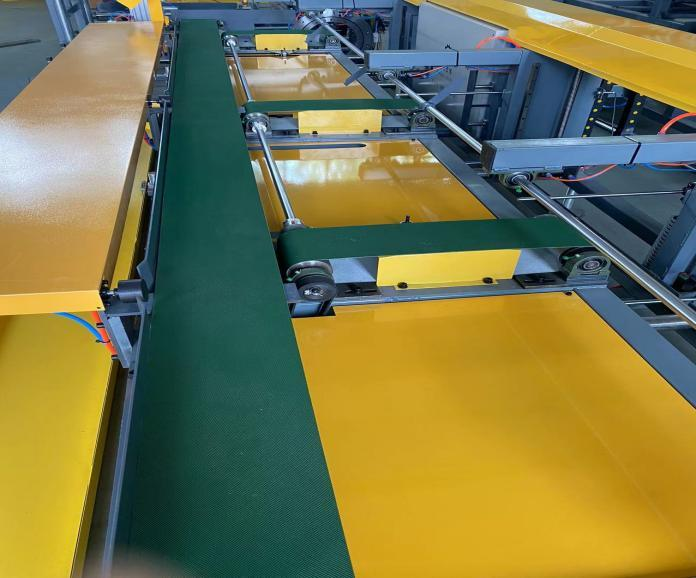

1.Feeding Section: Featuring variable frequency control with adjustable speed.

2.Clamping Section: Designed with servo control, this section offers a simple structure that is durable and basically maintenance-free.

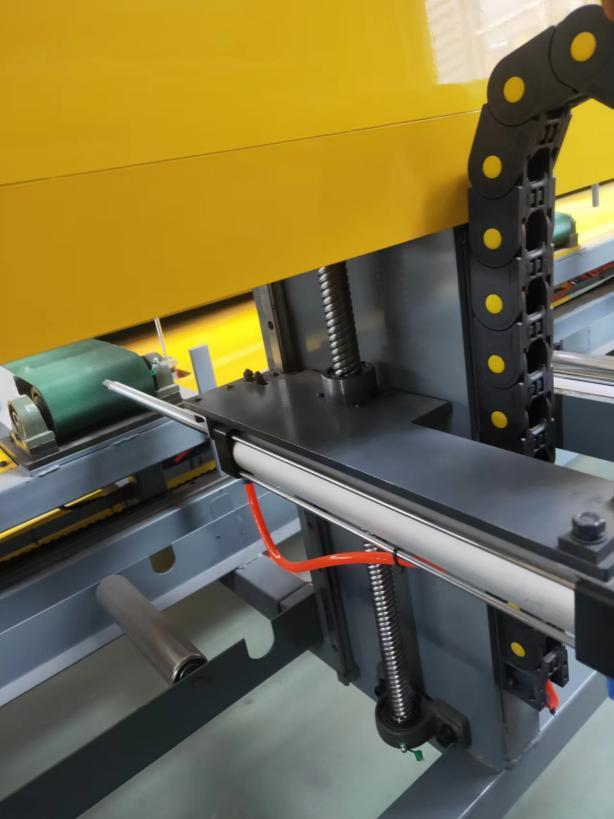

3.Stacked Segments: Equipped with screw drive to ensure high precision, the fully protected transmission shaft is designed for eliminating safety hazards.

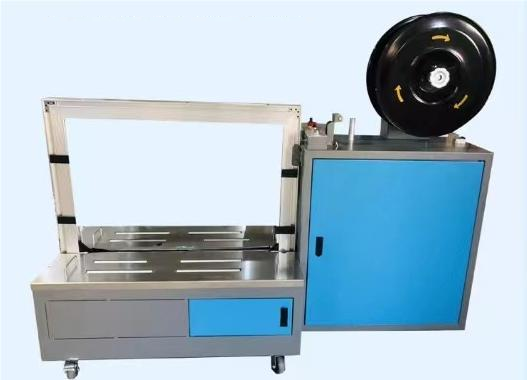

4.Packaging Section: Featuring a fully automatic PP packaging belt machine, this section operates with high accuracy and good stability.

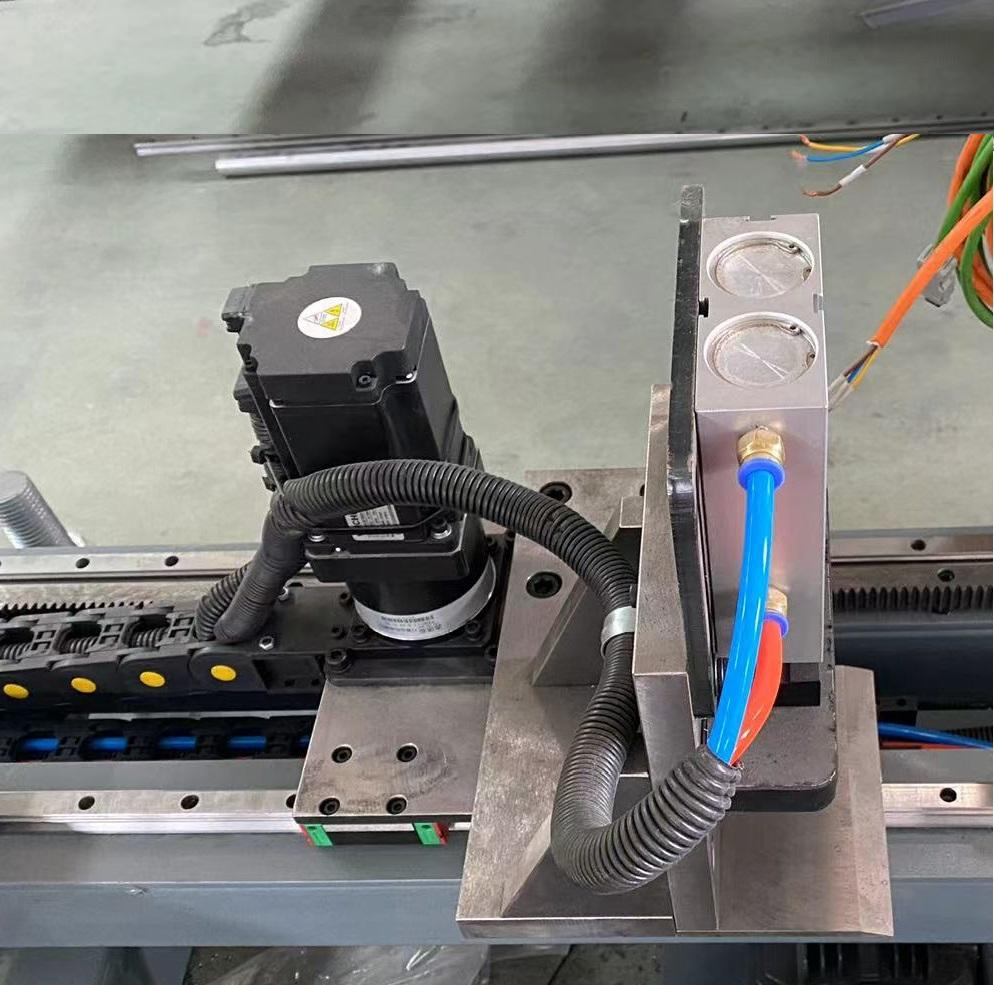

5.Pulling Section: Utilizing servo gear rack transmission, this section is suitable for high-speed and long displacement.

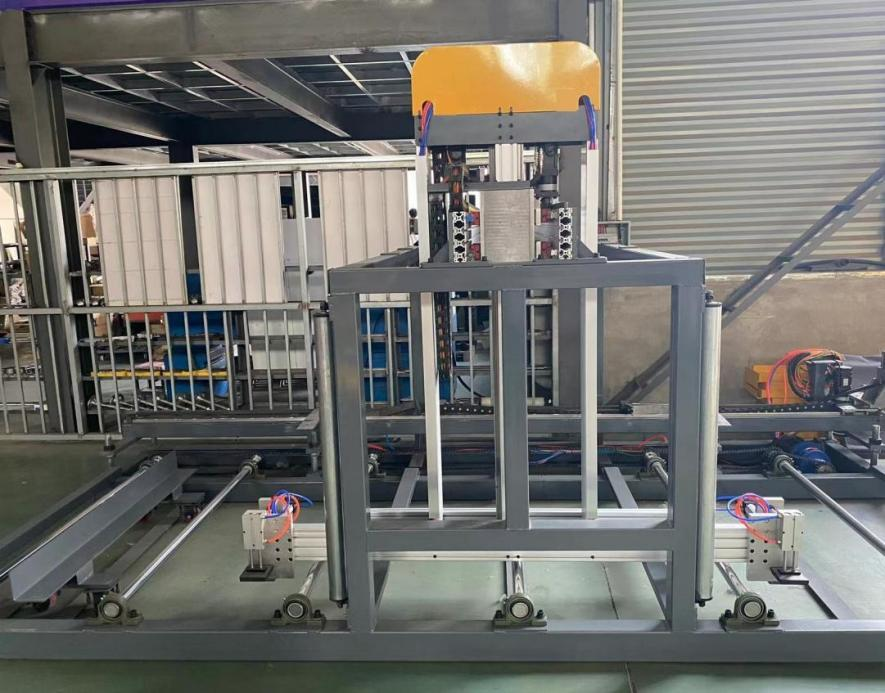

6.Stacking Section: Since the palletizing support plate is bent instead of welded, it will not break due to welding.

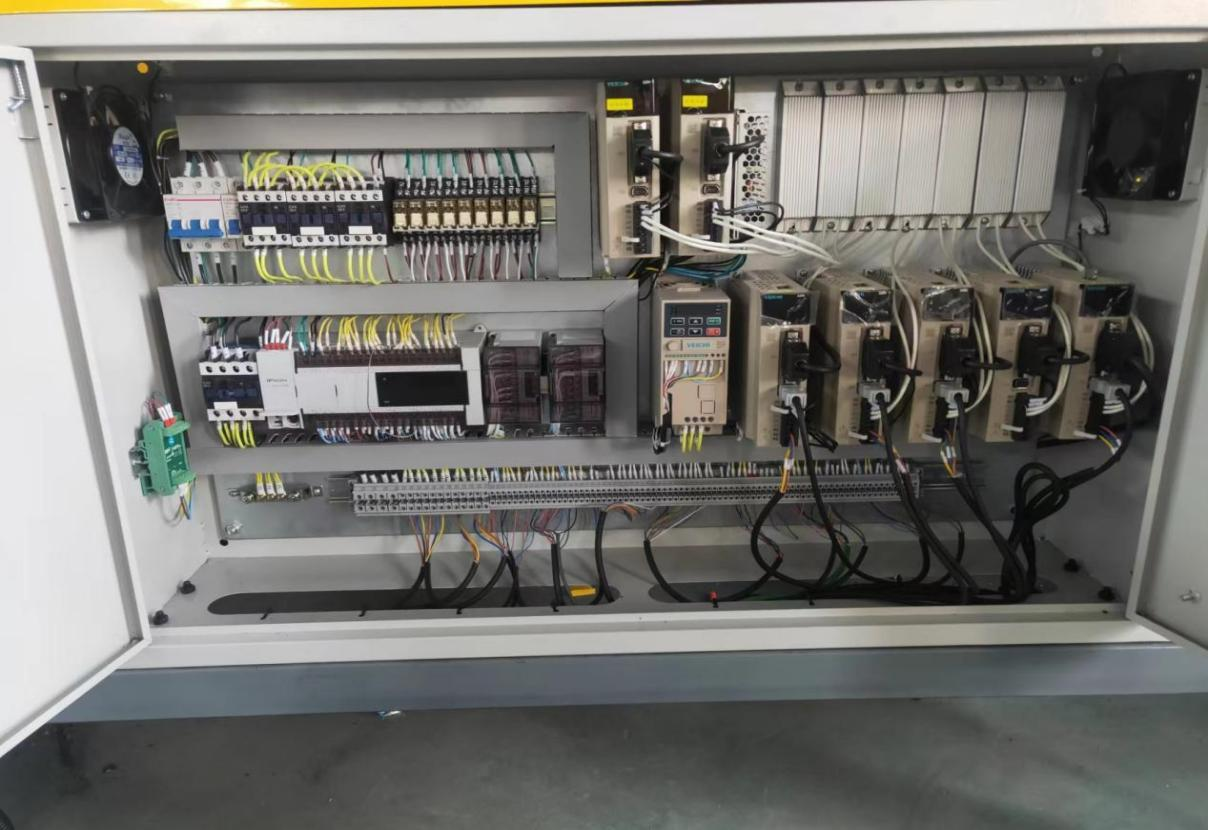

7.Electric Control Section: Equipped with five sets of servo VEICHI systems controlling buckling, lifting, stacking, tape winding, pulling, stacking translation, and stacking lifting. This configuration ensures greater stability for long-term and high-speed applications compared to stepper motor or pneumatic cylinder systems

Please scan the image below or contact us directly via the details provided:

.
