7 Ton Hydraulic De-Coiler: The "Golden Partner" of Steel Structure Production Line
In the modern cold bending forming industry, the 7 Ton Hydraulic De-Coiler is the "Gatekeeper" of the entire production line. Although it does not directly produce finished products, it determines whether the raw materials can smoothly and precisely enter the forming machine. Today, we are introducing this 7 Ton Hydraulic De-Coiler, which, with its powerful load-bearing capacity and automated feeding design, has become the preferred auxiliary equipment for C-shaped steel and floor slab production lines. Core working principle: The power of hydraulicsThe core logic of this machine is "hydraulic drive". Different from traditional screw adjustment, it uses the power provided by the 4KW hydrauli...
In the modern cold bending forming industry, the 7 Ton Hydraulic De-Coiler is the "Gatekeeper" of the entire production line. Although it does not directly produce finished products, it determines whether the raw materials can smoothly and precisely enter the forming machine. Today, we are introducing this 7 Ton Hydraulic De-Coiler, which, with its powerful load-bearing capacity and automated feeding design, has become the preferred auxiliary equipment for C-shaped steel and floor slab production lines.
Core working principle: The power of hydraulics
The core logic of this machine is "hydraulic drive". Different from traditional screw adjustment, it uses the power provided by the 4KW hydraulic station to push the wedge-shaped blocks inside the main shaft, causing four fan-shaped plates to expand radially.
Tightening: This structure can generate a huge radial force, firmly gripping the inner diameter of the steel coil and preventing slippage.
Braking: Combined with the hydraulic automatic brake system, it uses the inertia of the steel coil for damping braking to prevent the material from loosening.
Applicable products and application scenarios
This machine is designed to handle cold-rolled steel coils and acts as the primary feeding unit for various production lines, including:
Floor slab processing: Supporting the feeding of galvanized coils up to 1550mm in width.
Warehouse shelves: Ensuring the smooth unwinding of high-strength steel.
Metal cut to length machine: Acting as the front-end decoiling unit for slitting lines.
Roofing sheet machine: Ensuring a stable and continuous coil supply for glazed tile roll forming machines.
Core component analysis
Solid main shaft: Made from thick-walled seamless steel tubes, with extremely high bending strength, and does not deform even when carrying a load of 7 tons for long periods.
Hydraulic feeding cart: Standardized with an automated cart, with functions of lifting and moving, allowing one person to easily complete the feeding, eliminating the need for crane hoisting.
Technical specification parameters table
| Parameter | Specification |
|---|---|
| Feeding & Transmission | Automatic (Power: 7.5 kW) |
| Tensioning Method | Hydraulic, inner tight |
| Hydraulic Power | 4 kW |
| Max Sheet Width | 1550 mm |
| Sheet Thickness Range | 0.4 mm - 1 mm |
This machine doesn't have any fancy features. What it does is achieve the ultimate level of "stability". Whether from the parameter configuration or the actual application, it is an excellent assistant for improving workshop efficiency.

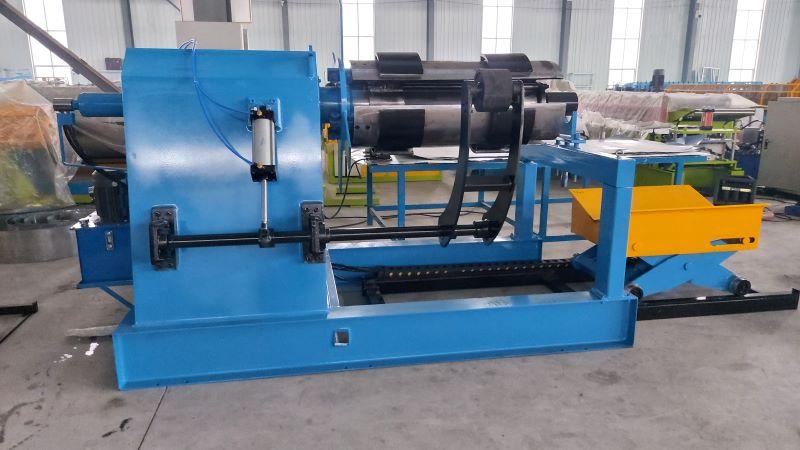

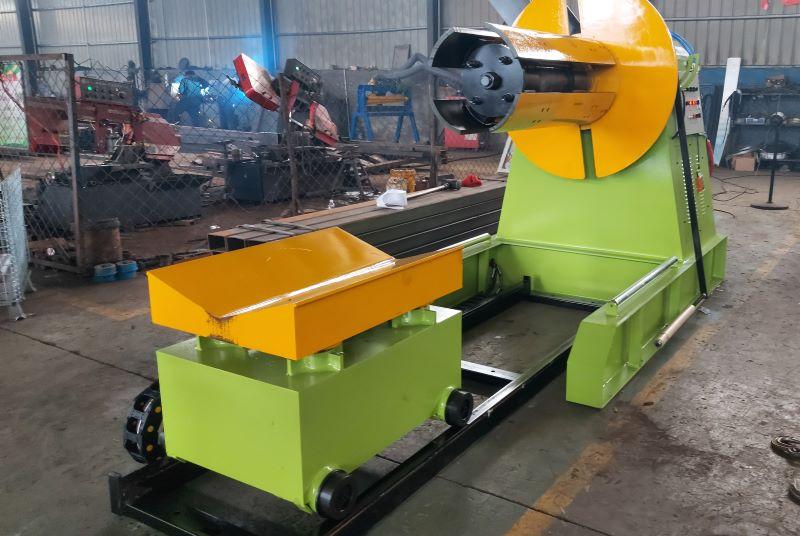

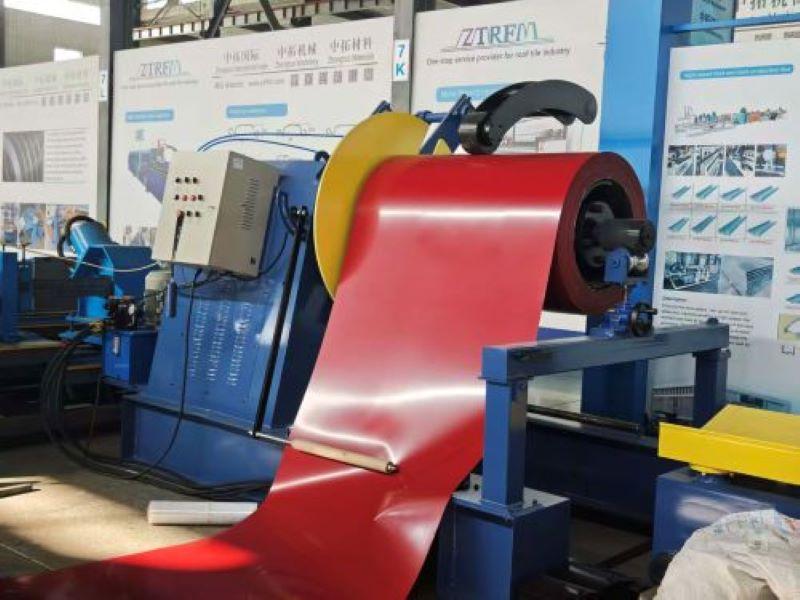

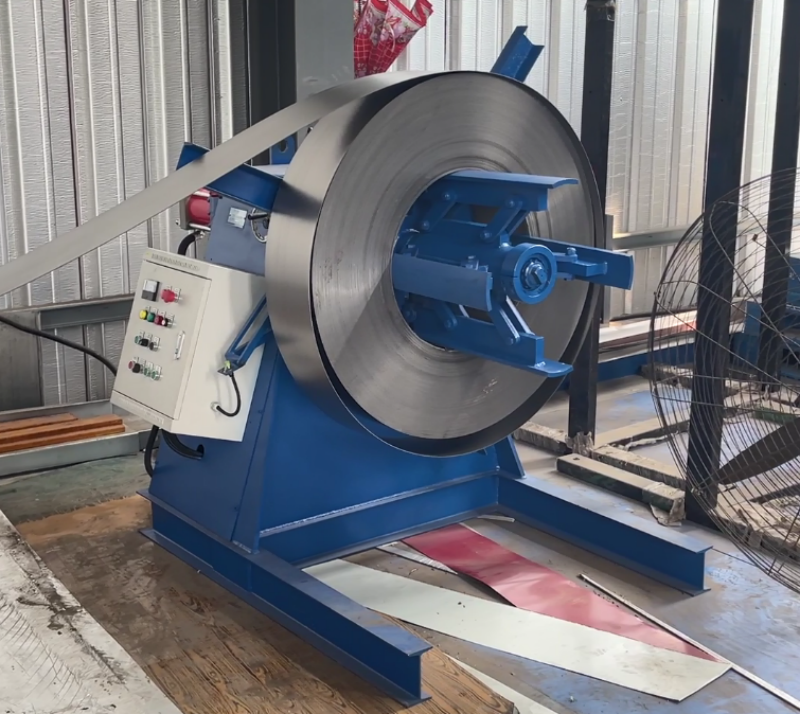

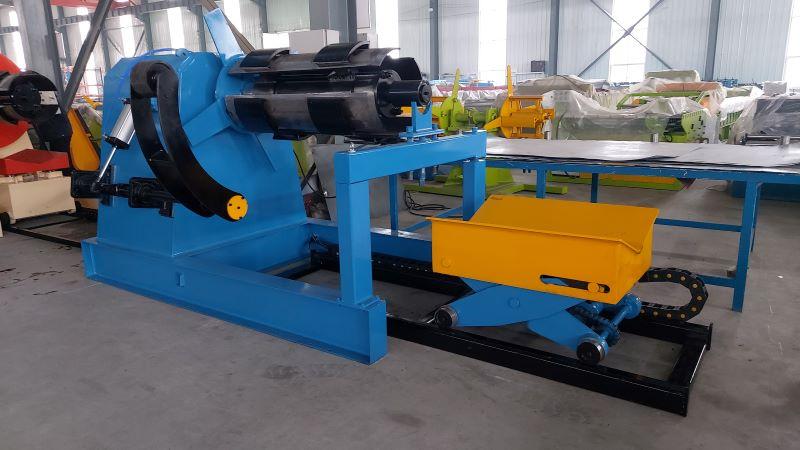

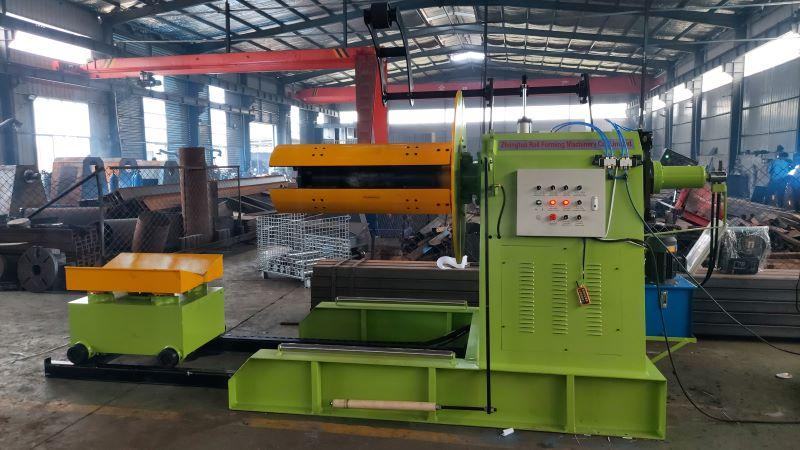

Machine image
Please scan the image below or contact us directly via the details provided:
