In heavy steel structure production lines, the stability of the Hydraulic De-Coiler directly determines the lifespan of the entire line.Ordinary uncoilers often encounter problems such as inner core deformation or machine body shaking when dealing with very heavy steel coils. Today, we delve into this heavy Hydraulic De-Coiler to see how it solves these problems through structural design.

1. Core Tensioning Technology: Slider vs. Support Shaft

Most common uncoilers on the market use simple four-prong supports, which have a small force-bearing area and are prone to damaging the inner wall of the steel coil.

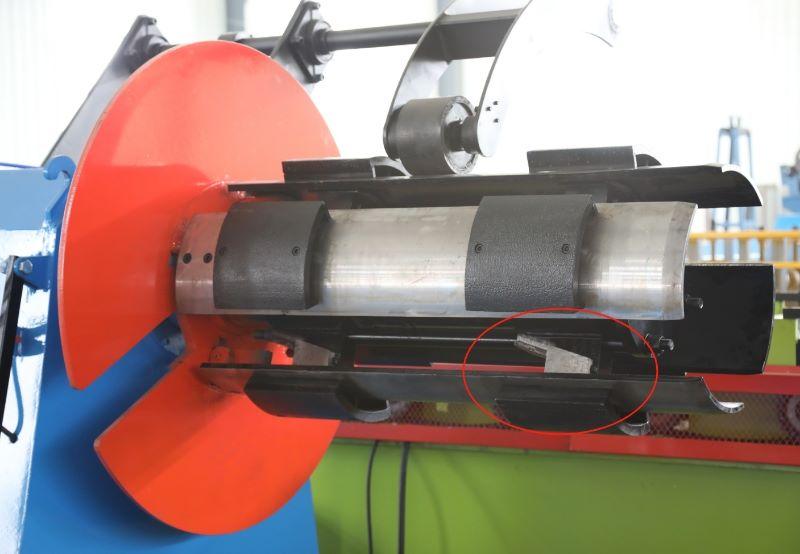

Our machine adopts the "slider type tensioning" technology.

Advantages: This structure uses hydraulic force to push the slider radially, resulting in more uniform force distribution.

Result: Even when dealing with high-strength hot-rolled coils, it can achieve "more stable and stronger" gripping, solving the loosening of the steel coil during high-speed rotation.

2. Chassis and Trolley: Stability of 5 Guide Columns

The loading process is a high-risk area for accidents.

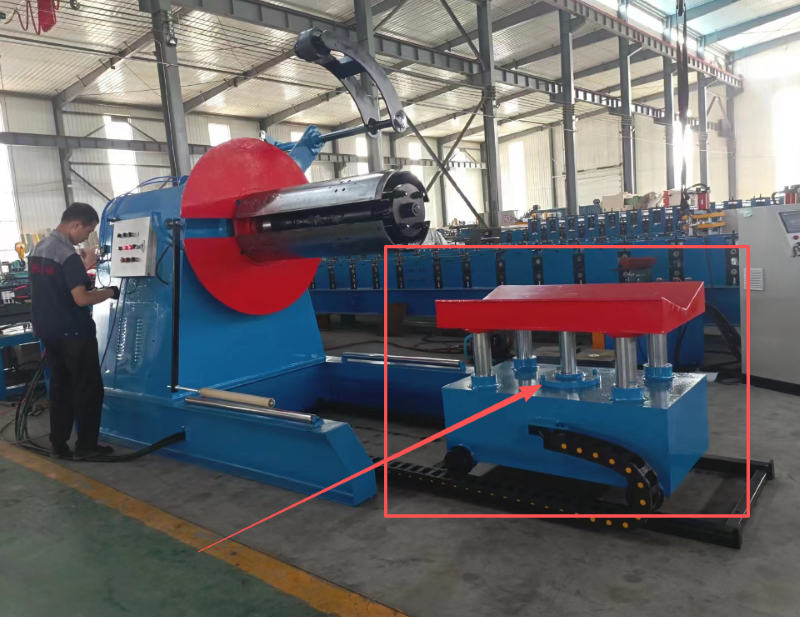

To bear the huge weight, we abandoned the traditional simple brackets and equipped a 5-guide-column hydraulic loading trolley.

Greater Power: The design of 5 guide columns has an additional force-bearing point compared to the ordinary 4-column structure, resulting in more uniform force distribution, stronger support, and a smoother lifting process.

More Stable Operation: When moving the steel coil, the trolley runs smoothly without the risk of tipping or tilting.

3. Details Determine Success: Anti-Damage Material Design

To protect the expensive raw materials, we put a lot of effort into the details.

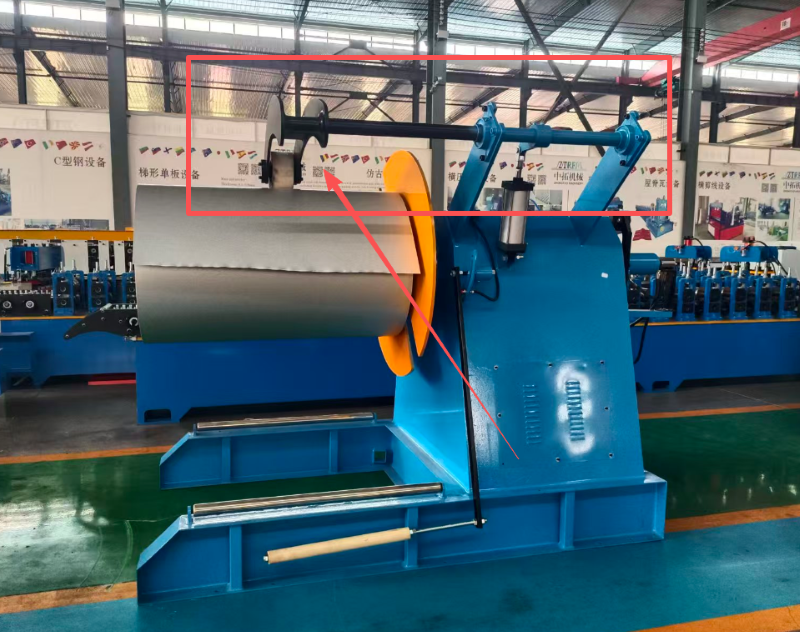

① The machine is equipped with a steel coil holding arm, which presses the head of the steel coil during operation to prevent it from scattering.

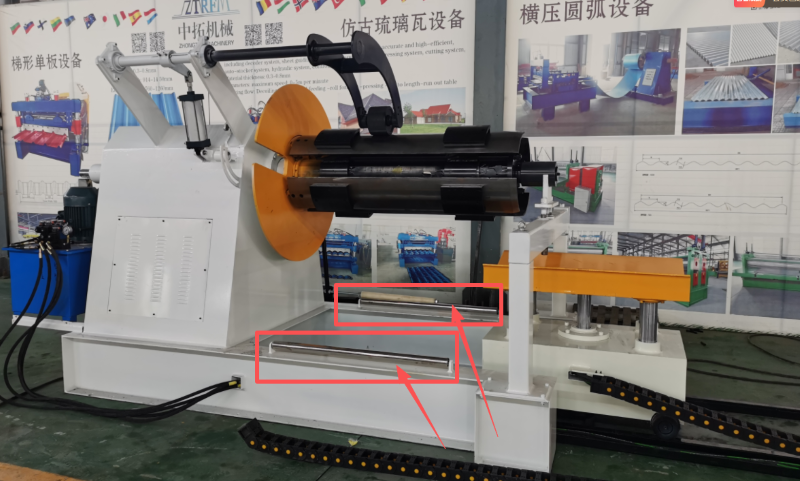

② The machine is equipped with tray material wheels to ensure that the steel coil does not directly contact the metal base during rotation, reducing the risk of material surface scratching

4. Key Parameter Overview

In conclusion, this Hydraulic De-Coiler is engineered to maximize production efficiency while minimizing material waste. By combining robust structural design with precision tensioning and safety features, it delivers the reliability required for heavy-duty industrial applications. We invite you to experience the difference in stability and performance on your production floor.
