The 50-600 Fully Automatic Perforated Cable Tray Forming Machine demonstrates excellent flexibility in processing capabilities, capable of covering various cable tray specifications with side heights ranging from 50mm to 100mm. What is even more commendable is its outstanding forming accuracy - it strictly limits the size tolerance to a very small range of ±1mm and ensures a perfect verticality of 90° ± 2°, making the finished products sharp-edged, square and pliable, fully meeting the strict high-quality industrial manufacturing standards.

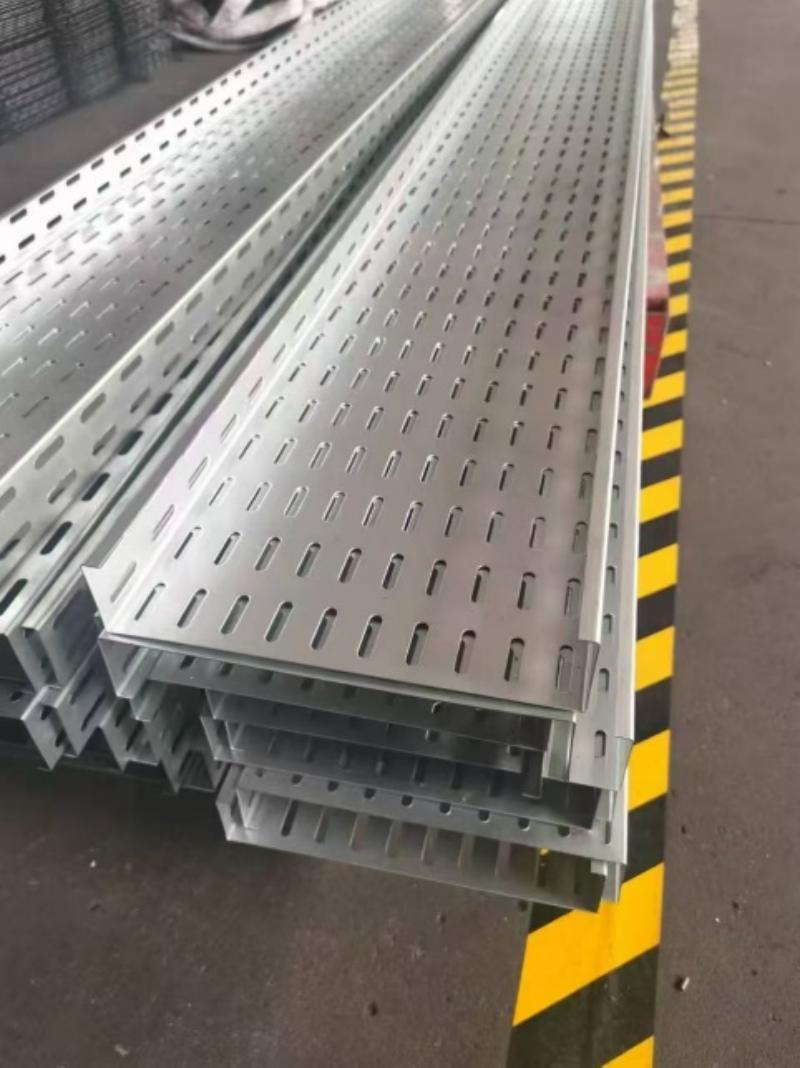

Cable Tray is a rigid structured wiring system for supporting, protecting, and organizing the management of wires and cables. It consists of the tray body, supports, brackets, and installation accessories (connection plates, bolts, covers, etc.). It provides a dedicated overhead channel for cables, replacing traditional methods such as pipe insertion and direct burial. It is the core wiring equipment for modern electrical and weak current systems. It is widely used in building complexes, industrial plants, power stations, data centers, rail transit, chemical industries, new energy, military industries, light industry, textiles, etc., and is the basic equipment for standardized and safe wiring of electrical and weak current systems.

Machine Working Process

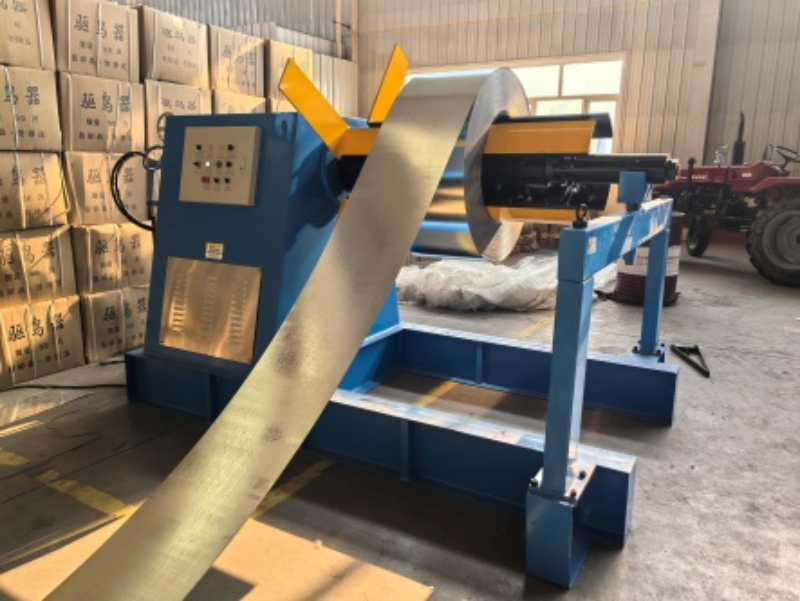

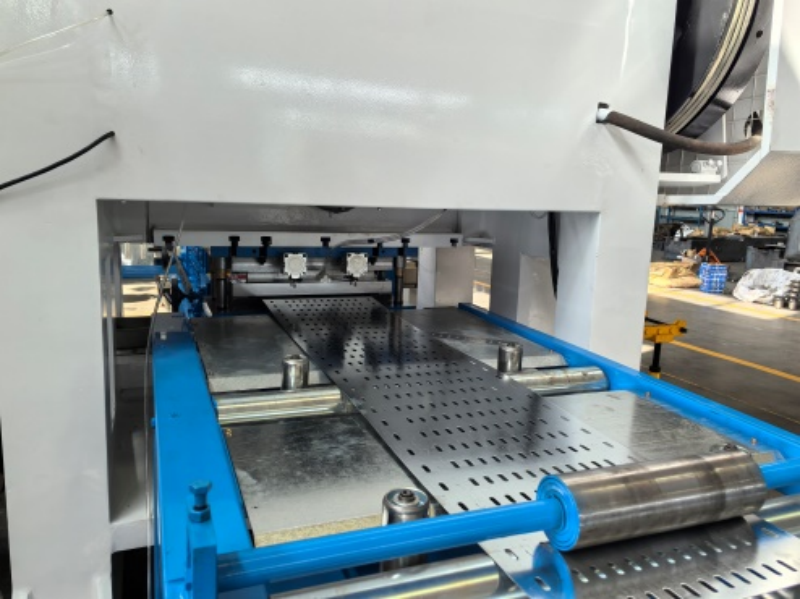

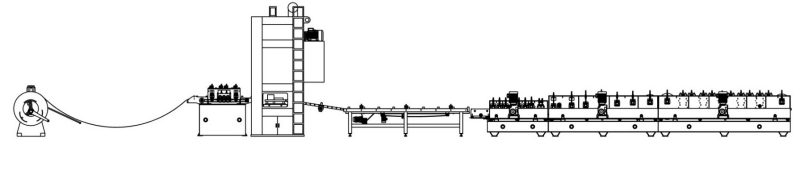

Decoiler → Servo Feeding & Integrated Machine → Punch Press (Punching & Cutting) → Conveyor Platform → Forming → Output

Main Parameters of the Machine

Reasons to Choose Our Machine
(Advantages of Cable Tray Compared to Traditional Wiring)

High Load Capacity

Flexible Wiring Layouts

Easy Expansion and Excellent Heat Dissipation

Long Lifespan and Convenient Maintenance (No need to break walls or excavate ground)

Standardized and Modular Design for High Installation Efficiency

Superior Protection and Management Capabilities

Please scan the image below or contact us directly via the details provided:
