Automated Drywall Framing Packaging: UD Profile Machine for Studs & Tracks
Publish Time:2026-03-18 16:39
Struggling Manual bundling of UD Profiles, drywall studs, tracks, and similar materials is slow and labor-intensive. Our UD Profile Packaging Machine replaces this manual work with an automated process driven by five sets of VEICHI servo systems , ensuring stable operation and precise handling.

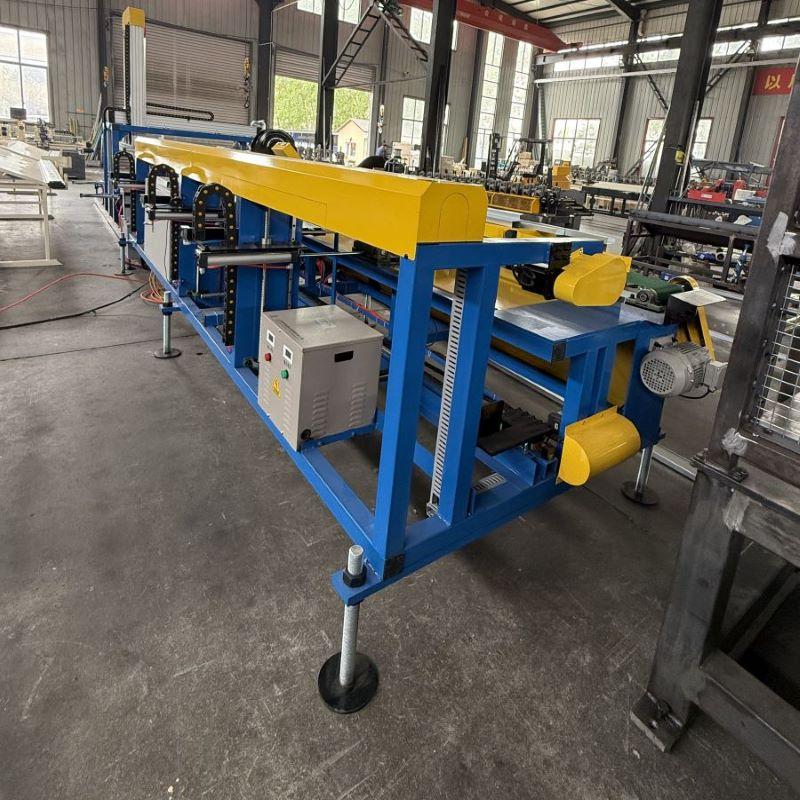

The UD PROFILE PACKAGING MACHINE runs at speeds up to 70m/min. While the standard setup bundles 24 pieces at once, both the bundle count and profile length are fully adjustable. Whether for interior partitions, exterior walls, or ceilings, we can configure the UD PROFILE PACKAGING MACHINE to match your exact production requirements, helping you cut labor costs without compromising on quality.
Diverse Finished Products Display
Applications:
- Interior non-load-bearing partitions
- Exterior wall framing (with appropriate sheathing)
- Load-bearing walls (with thicker gauge studs)
- Ceilings and soffits
Main technical parameters
| Parameter | Specification |
|---|---|
| Profile Length | 2.6 - 4.0m (maximum) |
| Working Speed | 70m maximum (for 3m profile, 24 pieces per bundle) |
| Working Dimensions | Length: 9.0m Width: 2.5m |
| Packaging Width | 900 - 1200mm |
| Packaging Height | 850mm (maximum) |
| Interface Language | English and Chinese |
| Electric Brand | Wistron (from Taiwan) |
| Voltage Requirement | 380V, 50Hz, 3-phase |
| Bundle Configuration | Standard: 24 pieces per bundle (arranged 4x3x2) Note: Quantity can be changed as required. |
These specifications highlight the robust capabilities of the UD PROFILE PACKAGING MACHINE, designed to meet international standards for speed and precision. Operating as a High speed automatic baler, the UD PROFILE PACKAGING MACHINE offers a wide operating range, making it suitable for diverse production lines globally. It stands out among competitors as a superior Automatic wrapping machine and UD profile packing machine.
Component Introduction

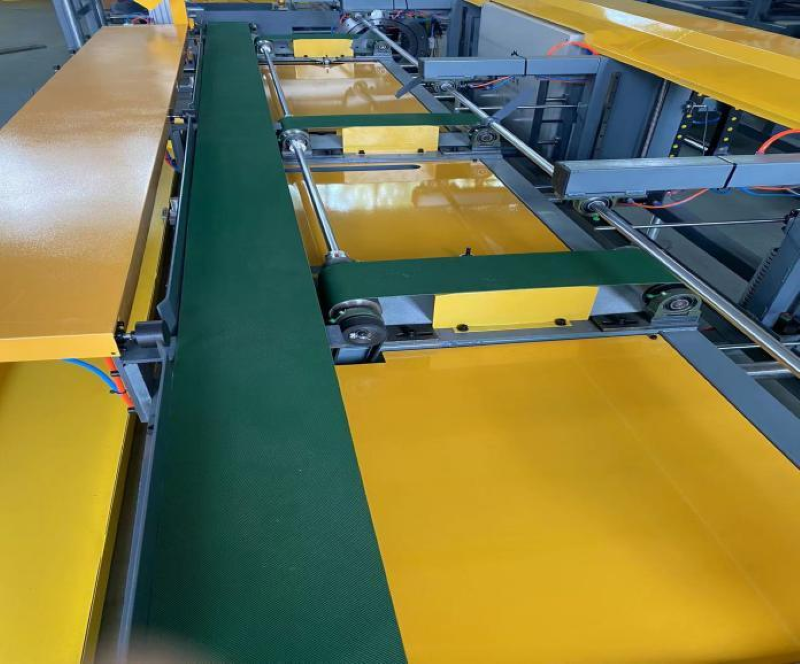

1.Feeding Section: Featuring variable frequency control with adjustable speed.

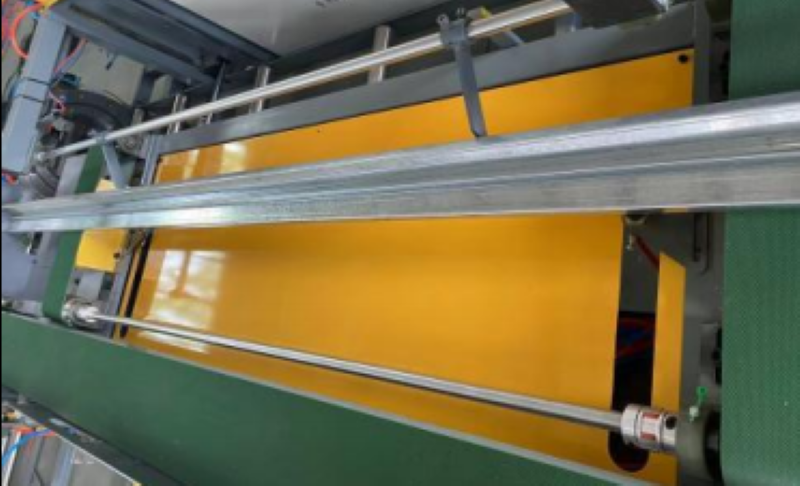

2.Clamping Section: Designed with servo control, this section offers a simple structure that is durable and basically maintenance-free.

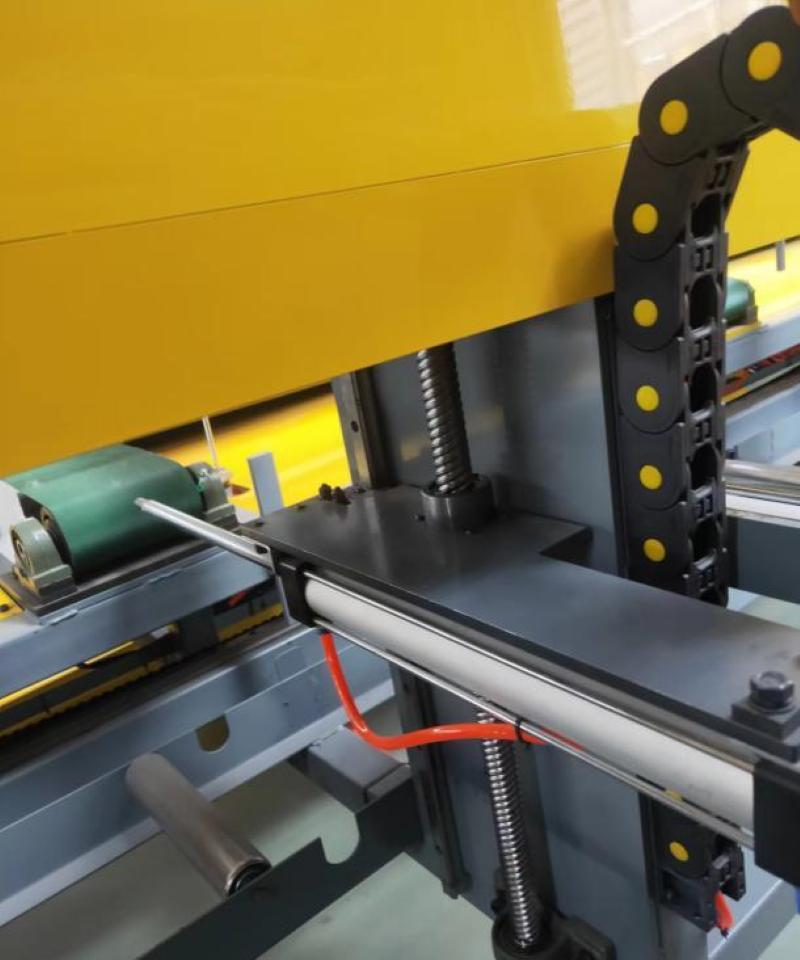

3.Stacked Segments: Equipped with screw drive to ensure high precision, the fully protected transmission shaft is designed for eliminating safety hazards.

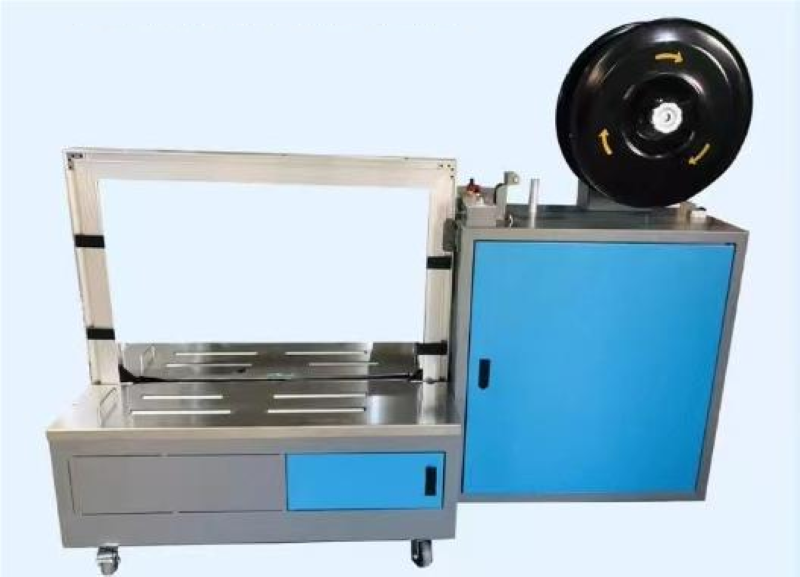

4.Packaging Section: Featuring a fully automatic PP packaging belt machine, this section operates with high accuracy and good stability.
5.Pulling Section: Utilizing servo gear rack transmission, this section is suitable for high-speed and long displacement.

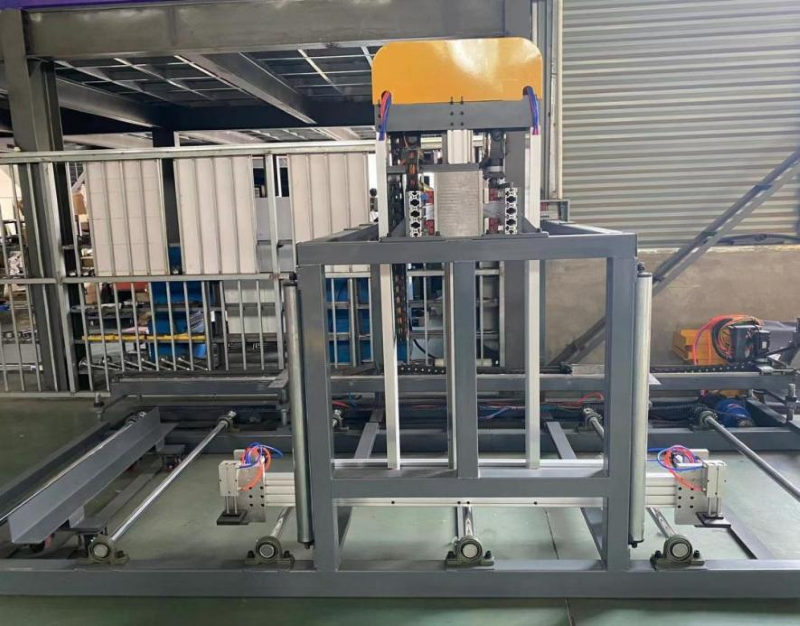

6.Stacking Section: Since the palletizing support plate is bent instead of welded, it will not break due to welding.

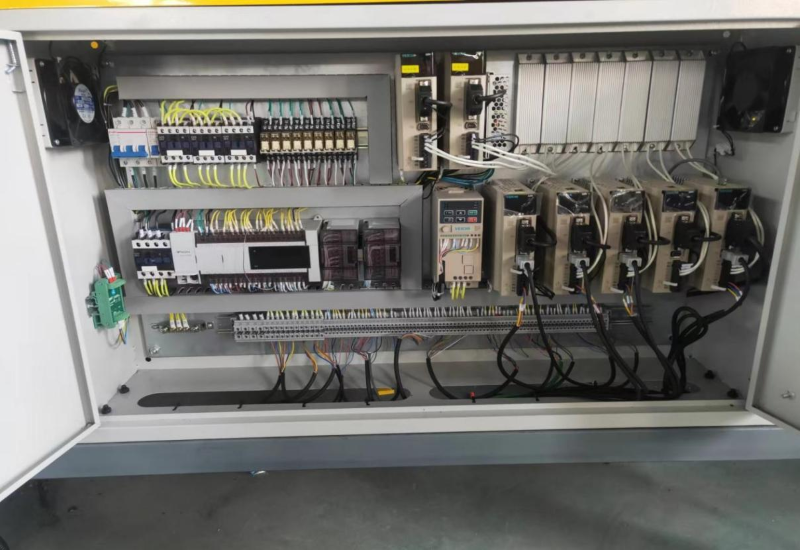

7.Electric Control Section: Equipped with five sets of servo VEICHI systems controlling buckling, lifting, stacking, tape winding, pulling, stacking translation, and stacking lifting. This configuration ensures greater stability for long-term and high-speed applications compared to stepper motor or pneumatic cylinder systems
💡 Why Choose Our UD Profile Packaging Machine?
Our machine doesn’t just package profiles — it transforms your production workflow.
- Professional Bundles: Each bundle contains exactly 24 pieces (4x3x2 configuration), neatly aligned and tightly secured with PP belts. Bundle quantity and profile length (2.6m–4.0m) are fully adjustable.
- Smart Automation: Powered by five sets of VEICHI servo drives and Wistron (Taiwan) components. One operator can run the entire line.
- High Output: Max working speed reaches 70m/min.
- Global Ready: Designed for 380V 50Hz 3-phase power with an English/Chinese interface. Handles packaging widths of 900–1200mm and heights up to 850mm.
One operator runs the whole line. Less labor, consistent bundles, no more tangled profiles.
Please scan the image below or contact us directly via the details provided:
.
