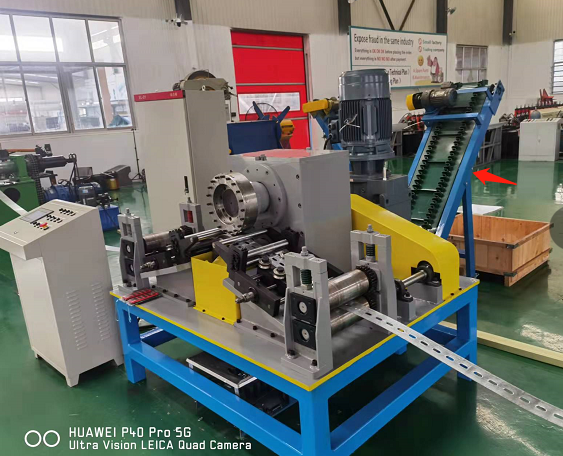

Rotary punch press high speed steel sheet punching machine rotary punching device

The rotary punching machines are a new small device, more and more popular on the market, are characterized by their high performance, long service life and safe handling. Rotary punches are always used if large numbers of units have to be processed. The continuous process and the quick and easy integration into new or existing production lines are just some of the many benefits of this technology, it is with quicker, quiter and more efficient advantages, can match with wall angel machine to produce corner bead.

Guiding roller: 2 pcs

                       Diameter of 50mm, 45# steel tempering treatment, hardness 50-55 to improve service life.

                       Usage: to let the sheet feeding into next device in the right position

Feeding&straightening device: Main roller diameter 198mm, 40cr with tempering treatment, hardness 30-35 degree

                                                  With gear box driving,  special gear is finely ground by a German honing machine

                                   Usage: to feed the sheet into rotary punching system positively and remove the sheet radian from coil, avoid the product curve and keep straight

Rotary punching system: Punching die material: DC3 imported from Japan, quenching hardness HRC 58-62 degree

                                              Two rollers besides the punching die to press the materials

                                         The rotary punching will keep the same speed control with main roll forming system

                                       With one extra pair of punching die as accessory.
