USA AG Panel Roll Forming Machine Pbr Roof Panel Machine R Panel Roof Sheet Making Machine

USA AG Panel Roll Forming Machine Pbr Roof Panel Machine R Panel Roof Sheet Making MachineDual profilemachines are often referred to as dual-height or double-deck machines or double layer machine because there is a lower set of stands and tooling for one profile, and a higher set of stands and tooling for the second profile. Both levels sit on a common base. Material feeds in and exits from either the higher or lower level. If floor space is limited, adding a second deck to your existing roll former is a good option. Running two profiles on only one machine will also save on manpower and the additional cost for a second set of ancillary items (electrical setups, controllers, uncoilers, shear...

   Inquire


USA AG Panel Roll Forming Machine Pbr Roof Panel Machine R Panel Roof Sheet Making Machine

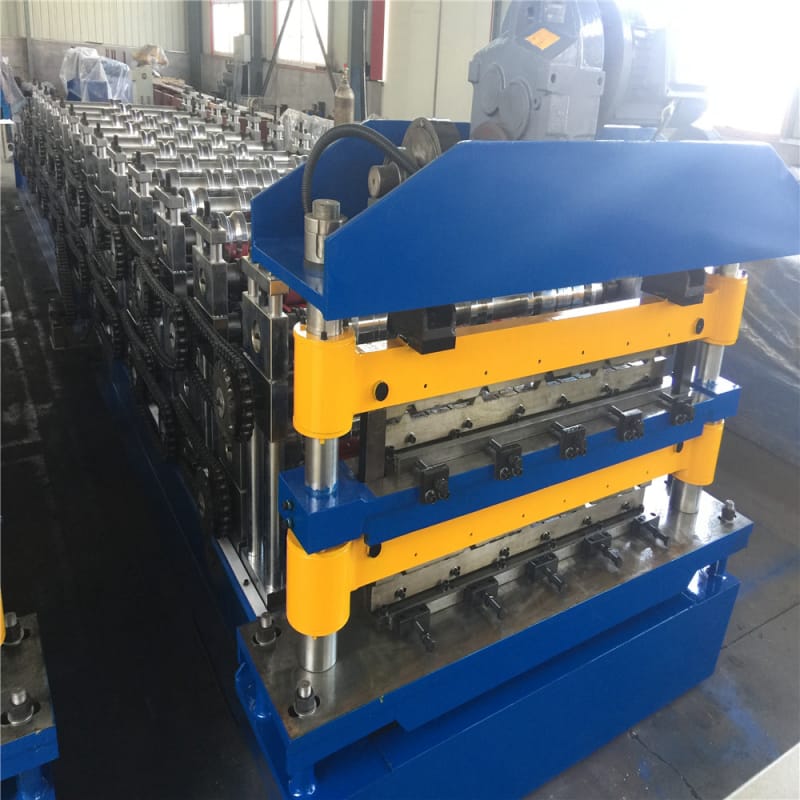

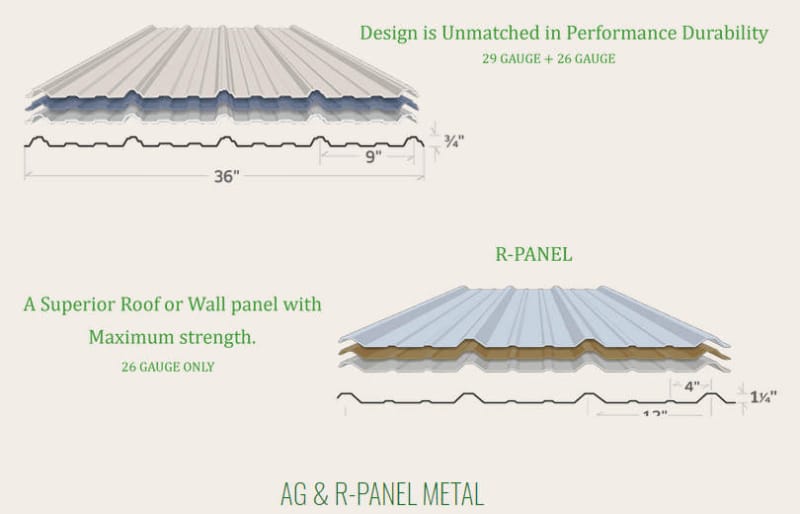

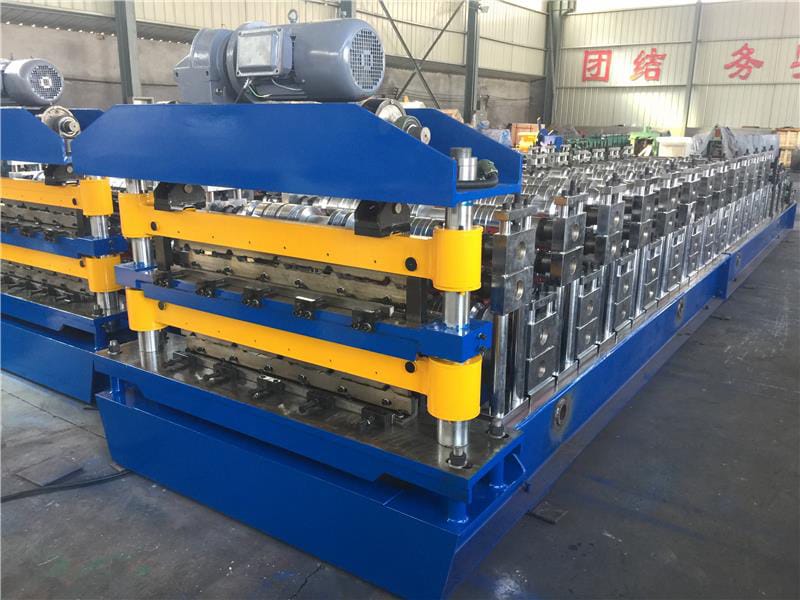

Dual profile machines are often referred to as dual-height or double-deck machines or double layer machine because there is a lower set of stands and tooling for one profile, and a higher set of stands and tooling for the second profile. Both levels sit on a common base. Material feeds in and exits from either the higher or lower level. If floor space is limited, adding a second deck to your existing roll former is a good option. Running two profiles on only one machine will also save on manpower and the additional cost for a second set of ancillary items (electrical setups, controllers, uncoilers, shears, etc.) needed for a new line. While a space-saver, you can only operate on one level at a time. The following are the most common profiles on dual profile panel lines in USA market is Ag panels and R/PBR panel, for the Ag panel and PBR panel roll former machine, we have different speed for customer choose. now we first show our low speed one.


Specifications

  • Forming Stations: 18/16

  • Coil Width: 1.09m (43″)

  • Coil Thickness: 0.3-0.6mm (.236″)

  • Main Structure: Steel

  • Main Motors: 5.5KW

  • Drive System: Chain Transmission

  • Roller Material: Chromed Heat Treated Steel

  • Main Shaft Diameter: 80mm

  • Working Speed: 20m/min (63ft/min)

  • Cutting System: Hydraulic Shear

  • Hydraulic Cutting Power: 5.5KW

  • Cutting Blade Material: Cr12 Heat Treated

  • Length Measurement: PLC

  • Length Tolerance: +2mm (.078″) -Overall Dimensions: 26′ x 5′ x 4′

Control Panel

  • Automatic Length Measurement

  • Automatic Quantity Measurement

  • Motor Overload Protection

  • System Over Current Protection

  • Short Circuit Protection

  • Control panel includes:

  • Mitsubishi Touch Display (or equivalent)

  • Panasonic Transducer

  • Omron Encoder
