USA Market Valley Flashing Roof Sheet Accessory Roll Forming Machine Galvanized Steel 90 L Flashing Roll Former
USA Market Valley Flashing Roof Sheet Accessory Roll Forming Machine Galvanized Steel 90 L Flashing Roll FormerLshapedflashingis a versatile, general useflashingused where a uniform or strengthened finish is needed on a 90° surface. Made with 28-Gauge galvanized steel,L-Flashing can play an essential part in protecting your home against water damage. L-Flashing can be cut into smaller lengths to use as step flashing, very popular on USA market.Product DescriptionRaw materials it rolls: Pre-painted steel coils; Aluminum, Galvalum, Galvanized etcMaterial thickness: 0.4-0.6mm (PPGI,GI,GA,PPGA)Capacity of De-coiler: 5 TONSRollforming stations: 10 stationsRoller materials: 45# steel with temperi...
USA Market Valley Flashing Roof Sheet Accessory Roll Forming Machine Galvanized Steel 90 L Flashing Roll Former

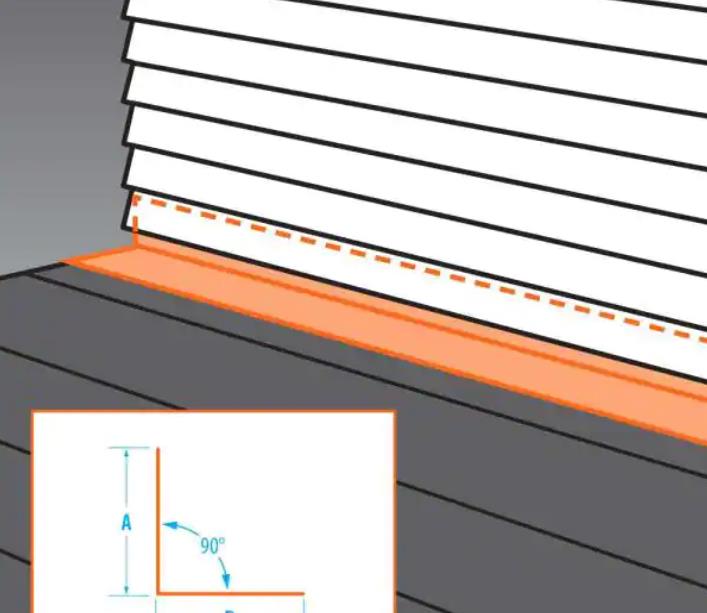

L shaped flashing is a versatile, general use flashing used where a uniform or strengthened finish is needed on a 90° surface. Made with 28-Gauge galvanized steel, L-Flashing can play an essential part in protecting your home against water damage. L-Flashing can be cut into smaller lengths to use as step flashing, very popular on USA market.
Raw materials it rolls: Pre-painted steel coils; Aluminum, Galvalum, Galvanized etc
Material thickness: 0.4-0.6mm (PPGI,GI,GA,PPGA)
Capacity of De-coiler: 5 TONS
Rollforming stations: 10 stations
Roller materials: 45# steel with tempering treatment and chrome coating treatment
Shaft diameter: 50mm
Safety option: Safety Cover eqiupped
Cutting: Hydraulic cutoff
Material of Cutting blade: Cr12 steel
Control unit: PLC control to ensure the machine to run both automatically and manually.

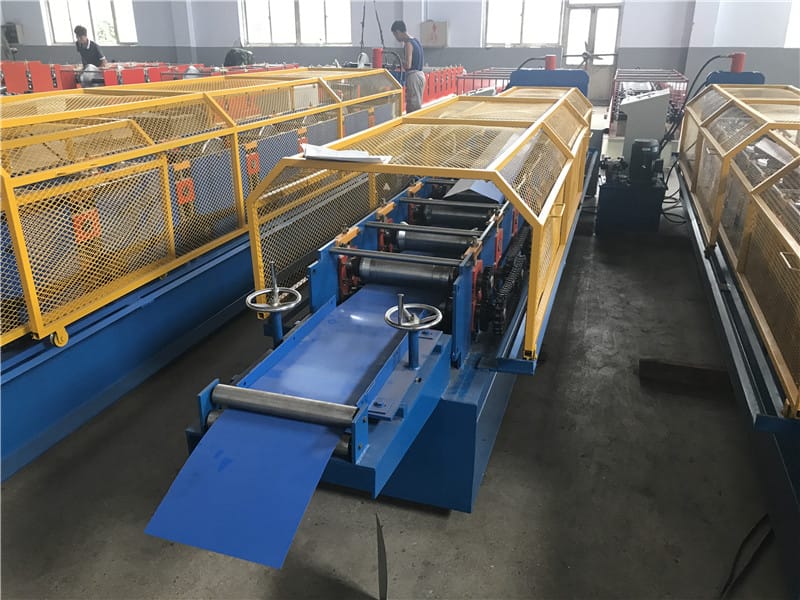

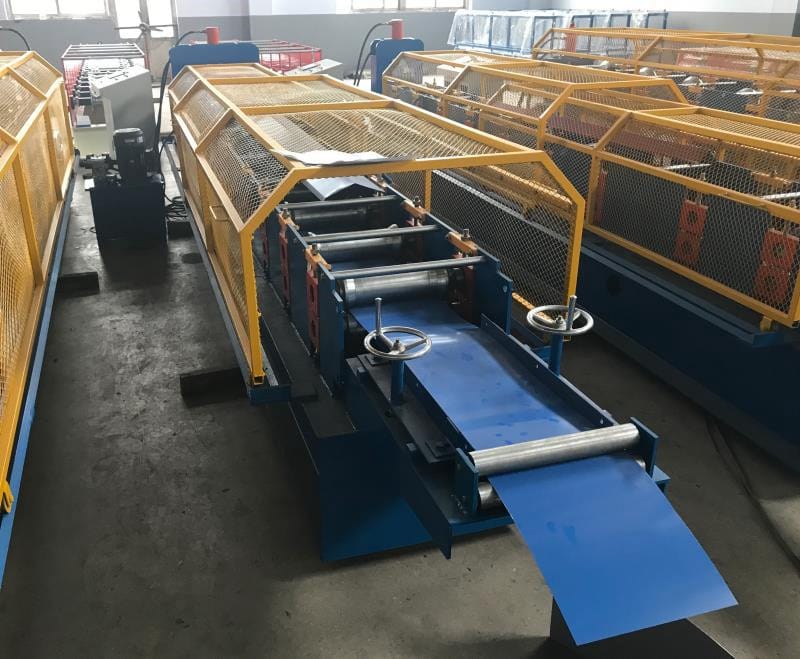

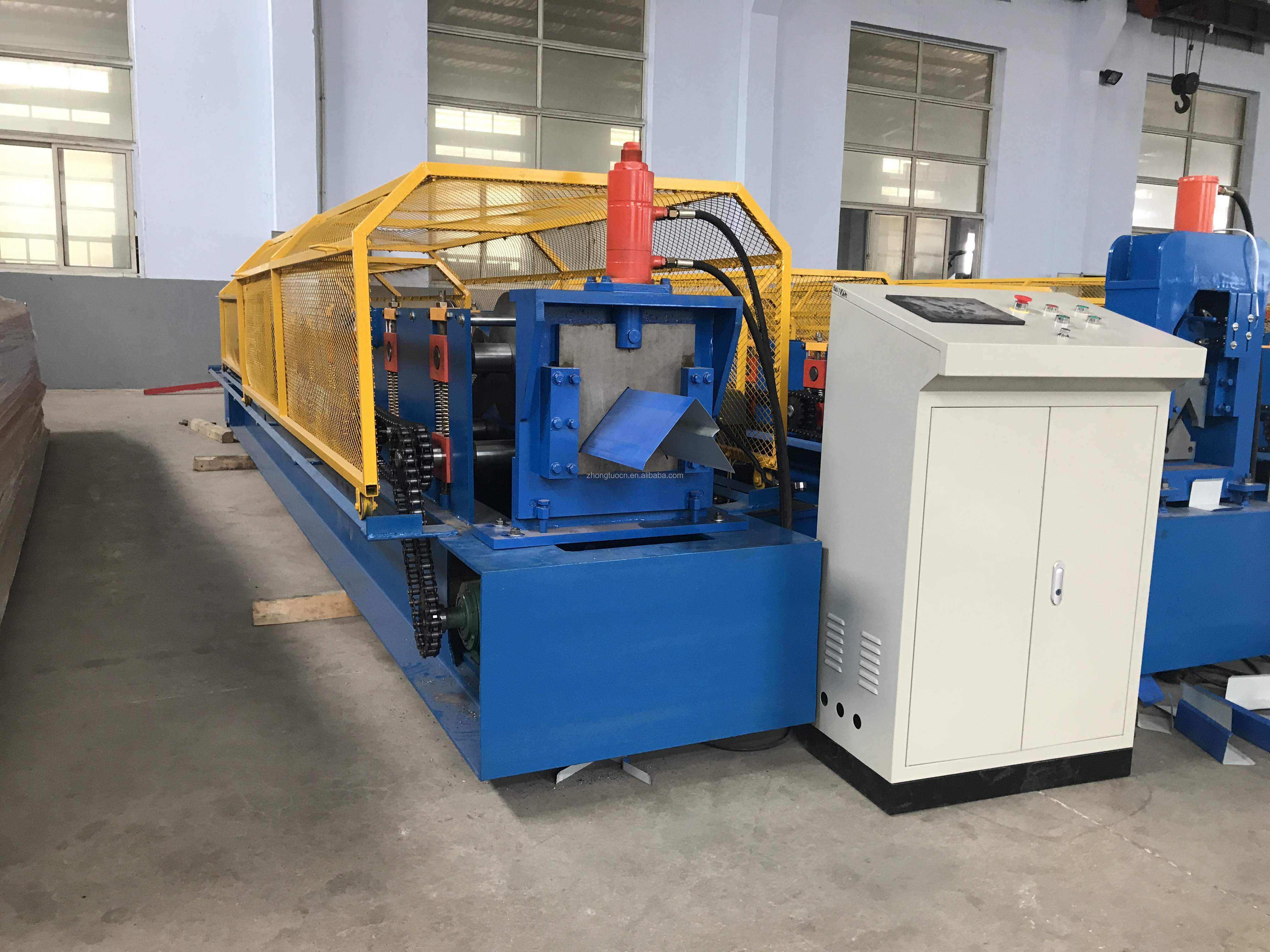

Machine pictures of L flashing valley roll forming machine :
