Cable Tray Machine
Complete Automated Production Line for Perforated Cable Trays
Maximize your factory output with our Fully Automatic Perforated Cable Tray Roll Forming Machine. This comprehensive system transforms raw steel coils into finished, perforated cable trays in a single pass. The line is engineered to handle a maximum coil weight of 8 tons and processes materials 0.5mm to 2.0mm thick. By integrating a 200-ton punching press with a 26-station roll former, we achieve a consistent production speed of 6 to 12 meters per minute, significantly reducing labor costs and increasing throughput for your facility.The Production ProcessOur machine simplifies manufacturing through a seamless, automated workflow. Here is how the raw material becomes a finished product:Decoil...
Maximize your factory output with our Fully Automatic Perforated Cable Tray Roll Forming Machine. This comprehensive system transforms raw steel coils into finished, perforated cable trays in a single pass. The line is engineered to handle a maximum coil weight of 8 tons and processes materials 0.5mm to 2.0mm thick. By integrating a 200-ton punching press with a 26-station roll former, we achieve a consistent production speed of 6 to 12 meters per minute, significantly reducing labor costs and increasing throughput for your facility.
The Production Process
Our machine simplifies manufacturing through a seamless, automated workflow. Here is how the raw material becomes a finished product:

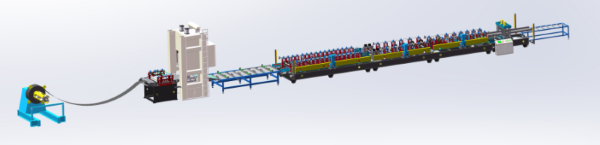

Decoiler → Integrated Servo Feeding Machine → Punching Press (Punching & Cutting) → Conveying Platform → Roll Forming → Discharge
Decoiling: The process begins with the 8-ton Decoiler, which holds the raw steel coil and feeds it smoothly into the line.
Servo Feeding: A precision Servo Feed System guides the metal strip, ensuring accurate positioning for the punching phase.

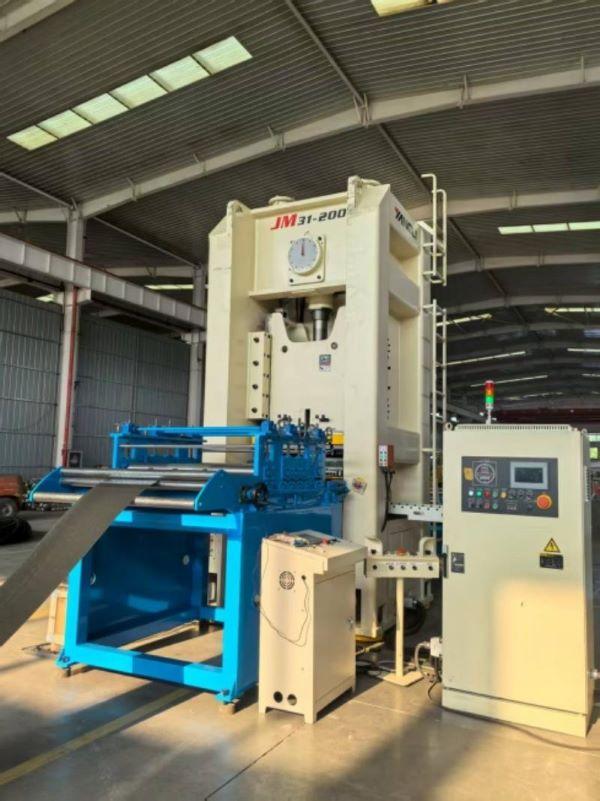

Punching & Cutting: The strip enters the 200-Ton Punching Press, where holes and cut-offs are made with high force and accuracy.
Conveying: The pre-punched material moves to the Conveying Platform, which stabilizes the sheet before forming.

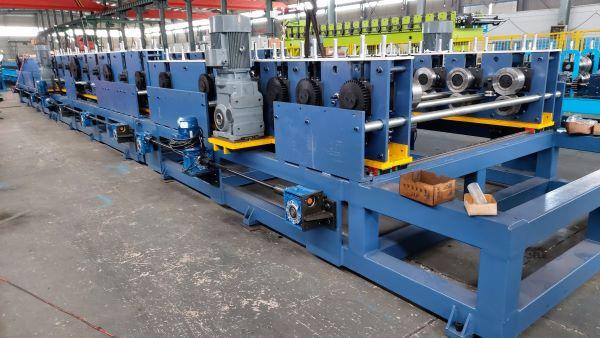

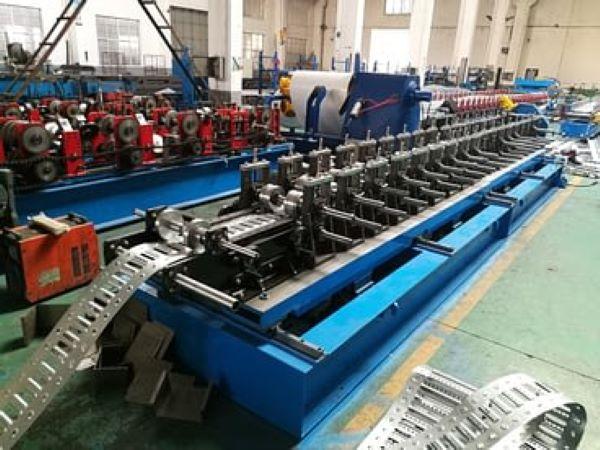

Roll Forming: The metal passes through 26 Rows of Cr12 rollers, gradually bending it into the final U-shape or tray profile.

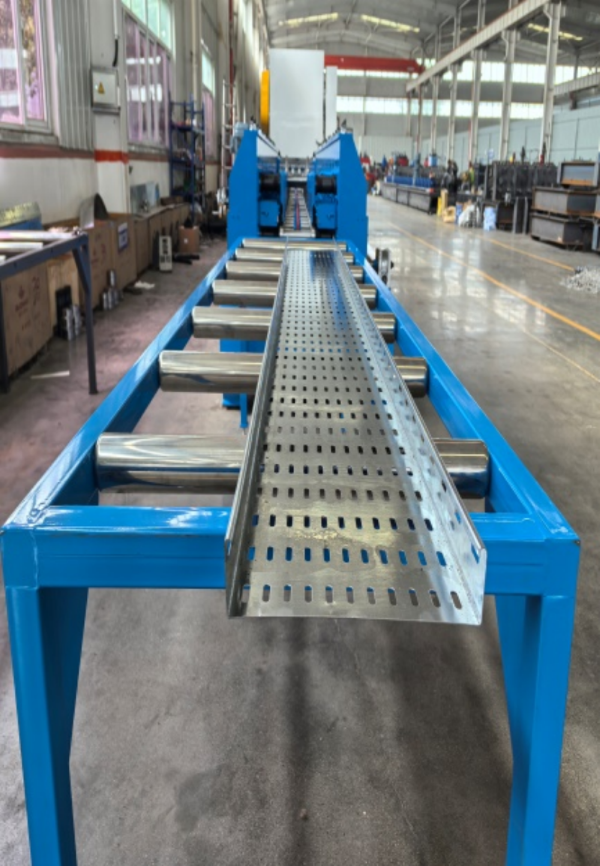

Discharge: The finished cable tray is cut to length (2000mm - 6000mm) and discharged, ready for stacking.

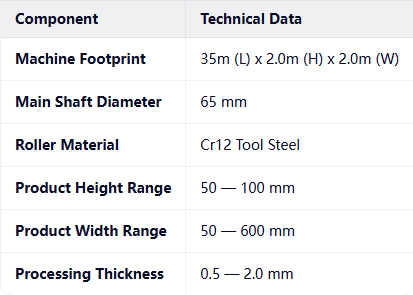

Detailed Specifications
Machine Highlights
Automated Control: The entire line is synchronized to prevent material jamming and ensure smooth operation.
High Capacity: Capable of running continuously to meet large-scale project deadlines.
Easy Maintenance: The layout is designed for easy access to the punching dies and forming rollers.
Product Quality and Tolerance
We understand that precision is critical in cable tray manufacturing. Our machine guarantees:
Length and Width Tolerance: Controlled within ±1mm.
Angle Accuracy: Maintained at 90°±2°, ensuring the trays are perfectly square for easy installation.
Versatile Output: The machine can produce trays with lengths from 2000mm to 6000mm, meeting various construction standards.

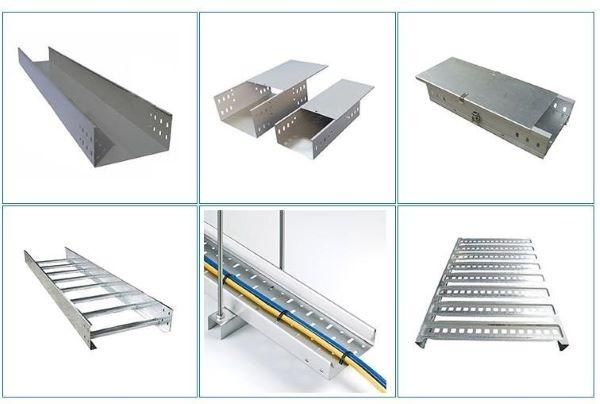

Machinery & Finished Products
