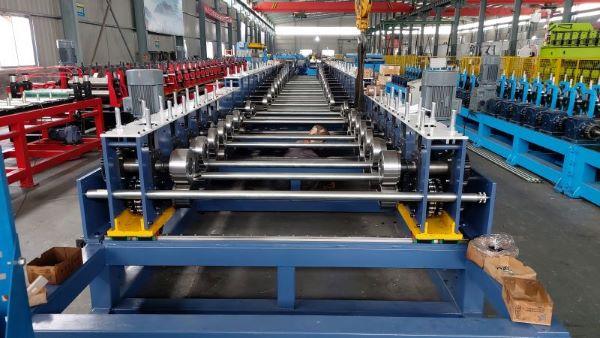

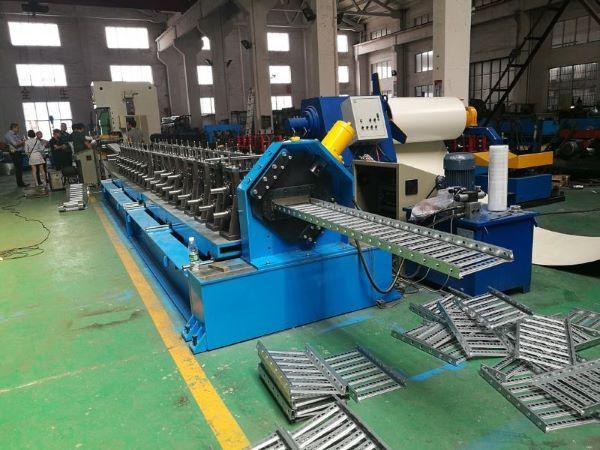

High Performance 600 Series Automatic Cable Tray Roll Forming Machine

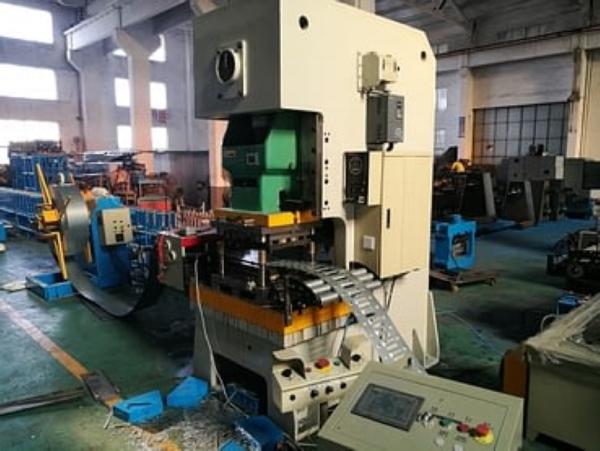

Our 600-Model Fully Automatic Perforated Cable Tray Roll Forming Machine is a heavy-duty industrial solution designed for precision manufacturing. This machine is capable of rolling steel strips with a thickness of 0.5mm to 2.0mm (tolerance ±0.03mm) into high-quality cable trays. The system features a robust 200-ton punching unit and a 65mm main shaft to ensure stability during high-speed operation. With a compact equipment footprint of 35m x 2m x 2m, this line delivers finished products with widths from 50mm to 600mm and heights from 50mm to 100mm. It is the ideal choice for manufacturers requiring strict adherence to dimensional tolerances and heavy-duty production capabilities.Core Techn...

Inquire

Our 600-Model Fully Automatic Perforated Cable Tray Roll Forming Machine is a heavy-duty industrial solution designed for precision manufacturing. This machine is capable of rolling steel strips with a thickness of 0.5mm to 2.0mm (tolerance ±0.03mm) into high-quality cable trays. The system features a robust 200-ton punching unit and a 65mm main shaft to ensure stability during high-speed operation. With a compact equipment footprint of 35m x 2m x 2m, this line delivers finished products with widths from 50mm to 600mm and heights from 50mm to 100mm. It is the ideal choice for manufacturers requiring strict adherence to dimensional tolerances and heavy-duty production capabilities.

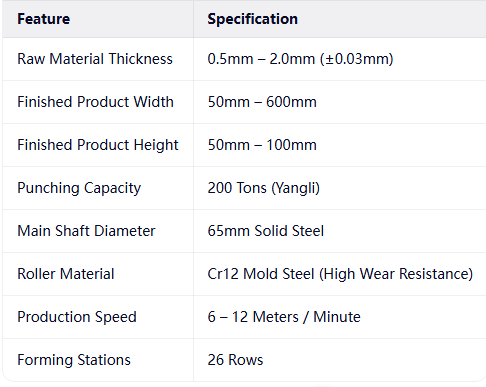

Core Technical Specifications

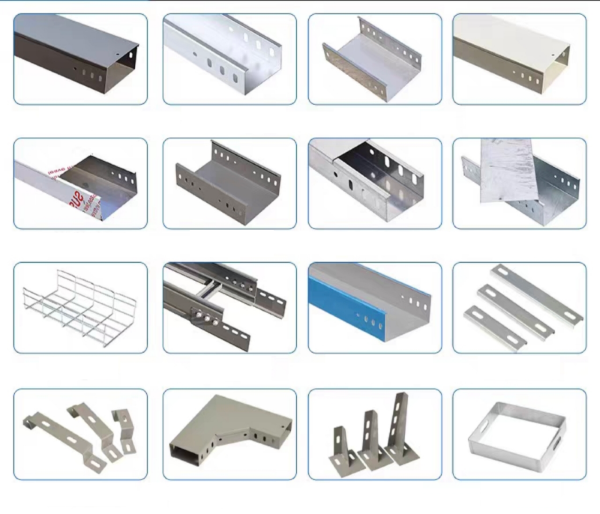

Finished Product Style Display

Fully Automatic Perforated Cable Tray Forming Machine141

Why Choose This Machine?

Precision Engineering: The machine maintains a length tolerance of ±1mm and a cutting angle of 90°±2°, ensuring every piece fits perfectly on site.
Heavy Duty Components: We use Cr12 for the rollers and a 65mm main shaft to prevent deformation under load, guaranteeing a long service life.
Versatile Output: Whether you need narrow trays for tight spaces or wide 600mm trays for data centers, this machine adjusts to your specific product specs.
