C Purlin Roll Forming Machine

This is C-shaped steel forming machine.lt is manufactured with advanced equipment, beautiful design, economical and practical,using industrial-grade computer motion control system, intelligent digital operation interface, humanized design performance issuperior, easy to use, simple operation, stable performance, reliable quality !

C-shaped steel is widely used in purlins and wall beams of steel structures, and can also be combined into lightweight rooftrusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of mechanical lightindustry

Features and Advantages

1. Fully automatic continuous C profile purlin roll forming machine for both heavy and light-duty use.

2. Adopts changing spacers to make multi sizes profiles sections.

3.Inline flexible punching system integrated

4.Pre-cutting and Post cutting is optional if need to produce many sizes, we can adopt pre-cutting to save cost and much timeon changing blades during change sizes.

5.lf profile sizes are not so many, post cutting can improve profile quality greatly.

6.Forming speed: 12-15 m/min

7.Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

8.Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

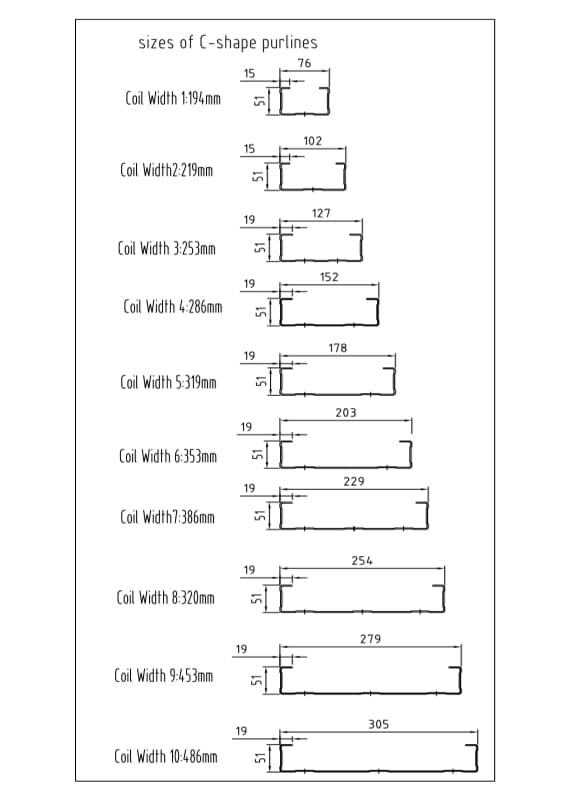

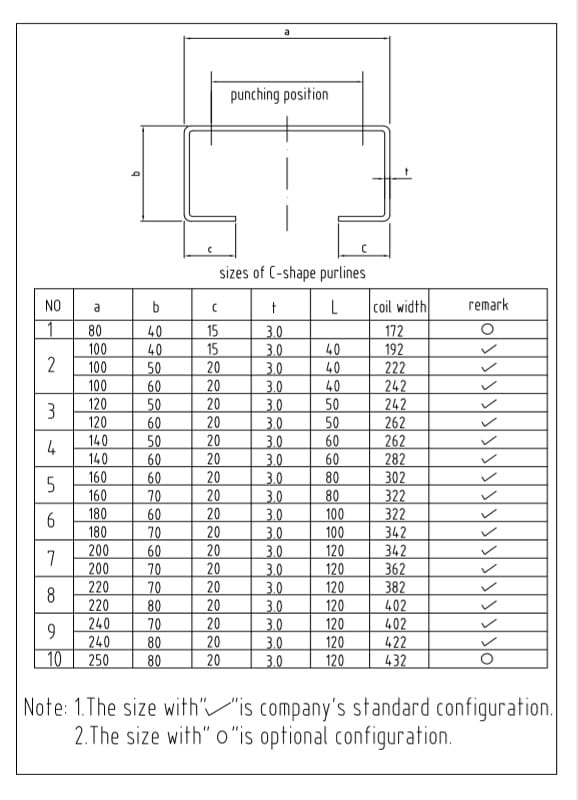

C purlin Drawing profile

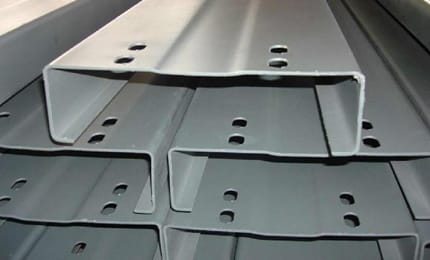

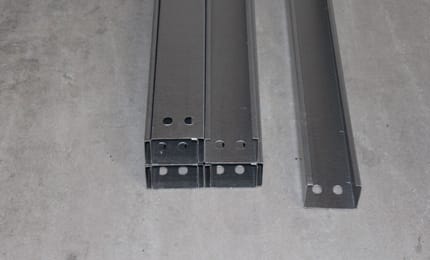

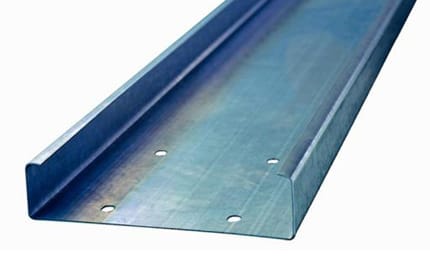

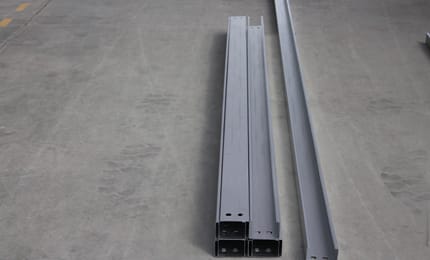

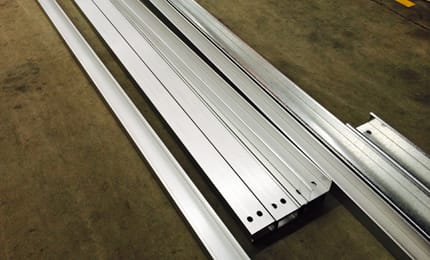

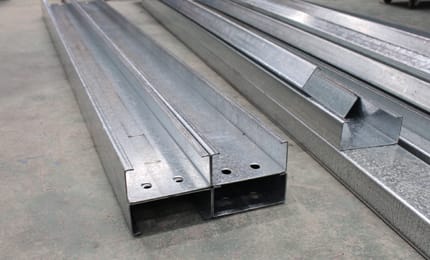

Finished product

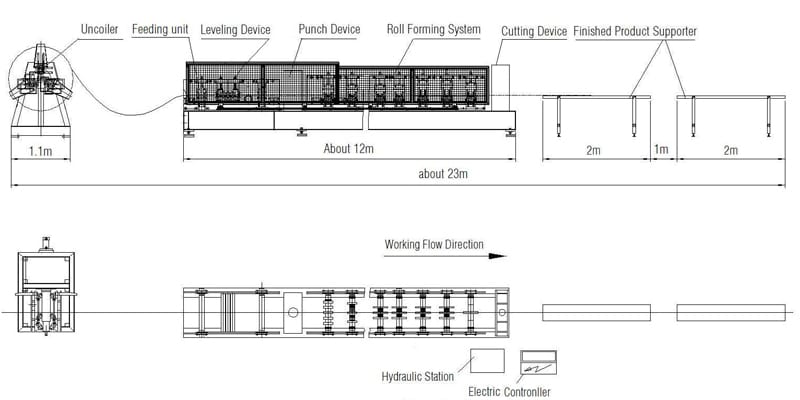

Working Flow

Pre-cutting flow:

Decoiler (passivelauto)→ Feeding and Guiding Table →leveling system → hole punching system (as profile requests)→ pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)

Post-cutting flow:

Decoiler (passivelauto) →Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → RollForming System → Post-Cutting to length (Hydraulic)→Output Manual SupporterIAuto Stacker(optional)

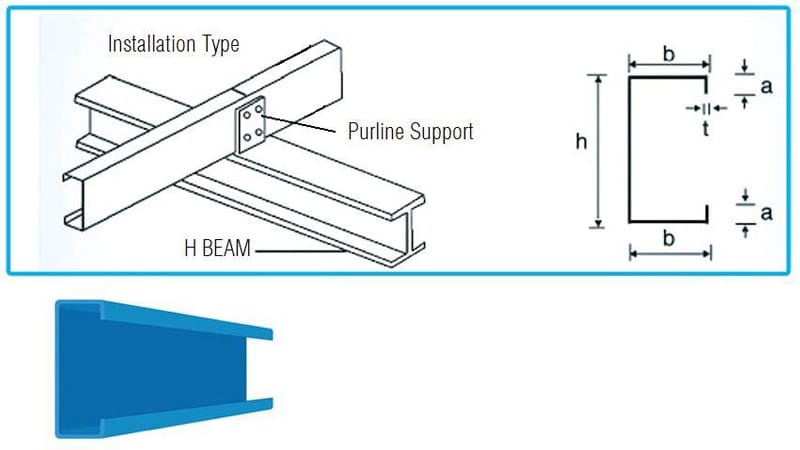

C Purlin lnstallation

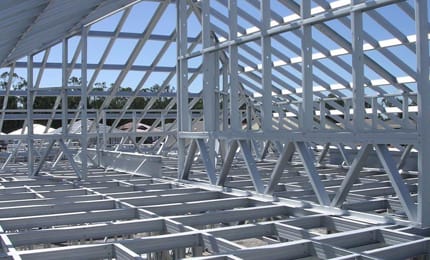

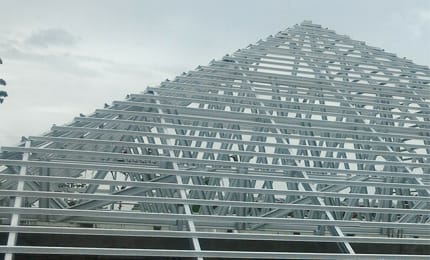

C Purlin Roll Forming Machine Application

As the features of green, solid, economical, durable, fast & easy to install and good looking, steel purline and other steel buildingmaterials are used more and more widely.

lt suits for various Light Steel structure construction, civil-construction and mansions building.
