CD Profile Packaging Machine for Metal Studs & Tracks - One-Click Operation
The PROFILE PACKAGING MACHINE features simple one-click operation, various alarms, and a formula storage system for 50 types of keels. It packages Metal Studs and Tracks, fundamental galvanized steel components in modern construction for durable, fire-resistant framing.Finished Product OverviewMetal Studs Definition:Metal studs are vertical framing members used to create the skeleton of a wall. They are typically made from cold-formed steel and come in various sizes and gauges to accommodate different structural requirements. Advantages:1. Durability: Resistant to rot, warping, and insects. 2. Fire Resistance: Non-combustible, providing better fire resistance than wood. 3. Consistency: Unifo...
The PROFILE PACKAGING MACHINE features simple one-click operation, various alarms, and a formula storage system for 50 types of keels. It packages Metal Studs and Tracks, fundamental galvanized steel components in modern construction for durable, fire-resistant framing.
Finished Product Overview

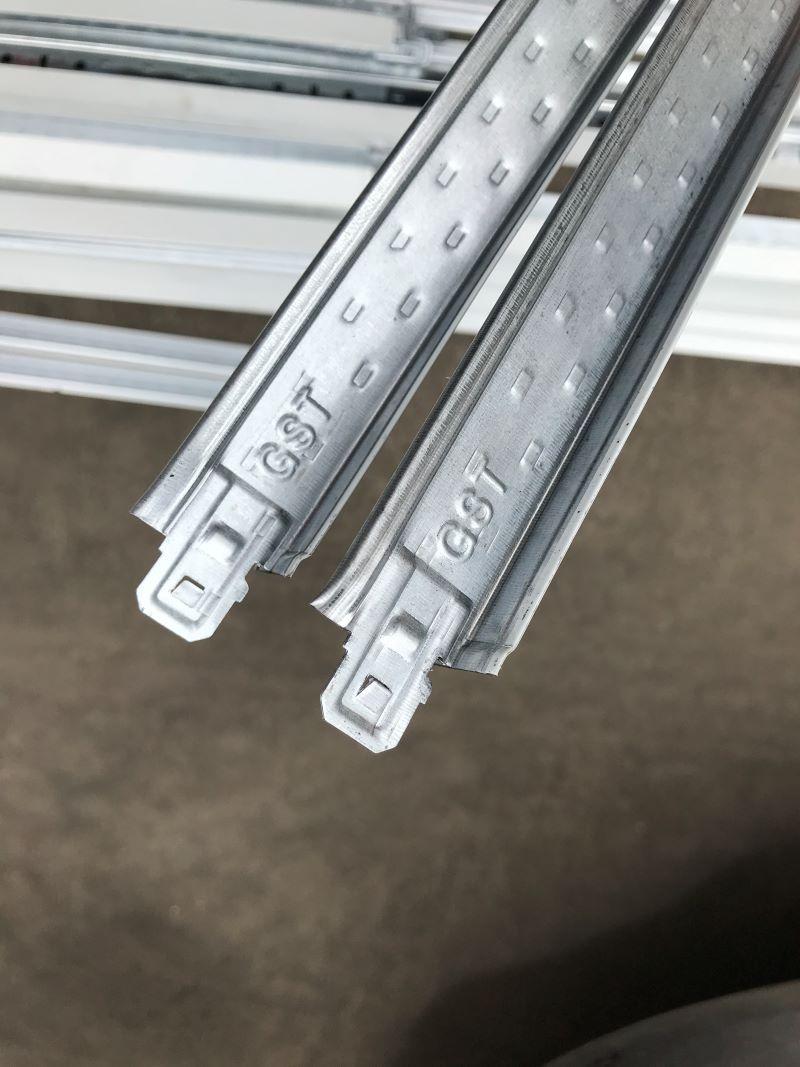

Metal Studs
Definition:
Metal studs are vertical framing members used to create the skeleton of a wall. They are typically made from cold-formed steel and come in various sizes and gauges to accommodate different structural requirements.
Advantages:
1. Durability: Resistant to rot, warping, and insects.
2. Fire Resistance: Non-combustible, providing better fire resistance than wood.
3. Consistency: Uniform dimensions and straightness, reducing construction errors.
4. Lightweight: Easier to handle and transport compared to wood.
Applications:
- Interior non-load-bearing partitions
- Exterior wall framing (with appropriate sheathing)
- Load-bearing walls (with thicker gauge studs)
- Ceilings and soffits
Main technical parameters
| Parameter | Specification |
| Profile Length | 2.6 - 4.0 m (maximum) |
| Working Speed (Configuration A) | Max 70 m/min (for 3m profile, 12 pieces/bundle) |
| Working Speed (Configuration B) | Max 100 m/min (for 3m profile, 24 pieces/bundle) |
| Machine Dimensions | Length: 9.0 m Width: 2.5 m |
| Packaging Width | 900 - 1200 mm |
| Packaging Height | Max 850 mm |
| Interface Language | English and Chinese |
| Electric Component Brand | Wistron (Taiwan) |
| Voltage Requirement | 380V, 50Hz, 3-phase |
| Bundle Configuration | Standard: 12 pieces/bundle (arranged 2×3×2) Note: Quantity can be adjusted per requirement. |

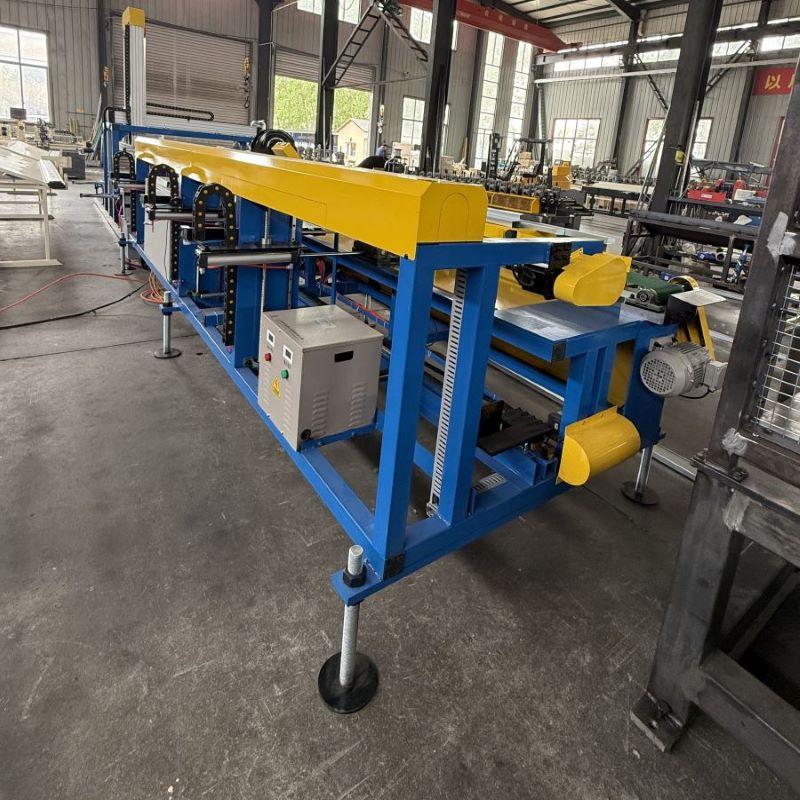

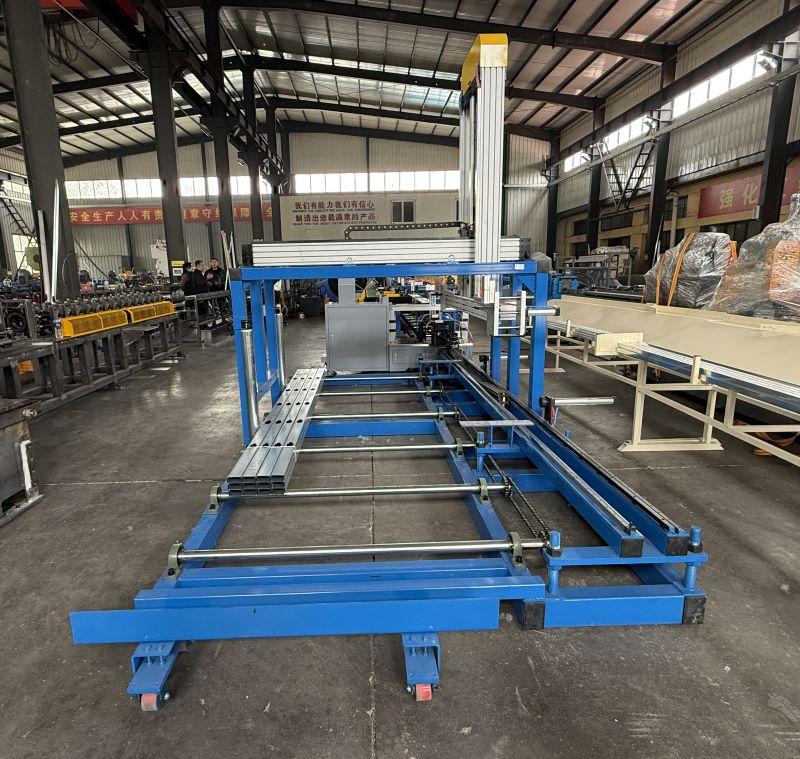

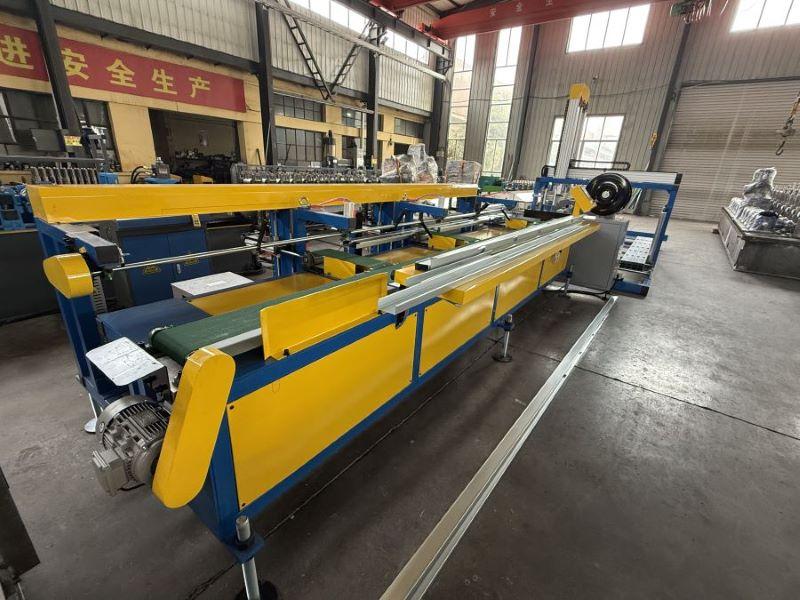

More pictures of the machin
Frequently Asked Questions
Q: What is the maximum length of the profile this machine can handle?
A: The maximum profile length is 4.0 meters.
Q: What is the maximum working length?
A: The maximum profile length is 4.0 meters. Custom sizes are available upon request.
