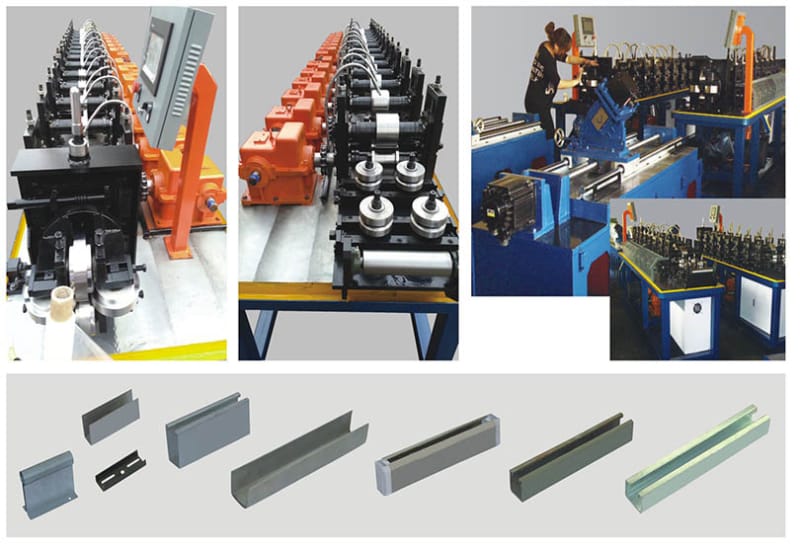

Omega 63 Light Keel Roll Forming Machine

Omega 63 Light Keel Roll Forming Machine is a strip of raw materials, through continuous cold rolling molding, production of complex cross-section profiles, which consists of decoiler, guide rack, forming hosts, calibration device, cut-off part, receiving station , composed of electrical control and so on. It is easy to use, easy to operate and so on.
ORIGIN Hebei Province-Cangzhou

SUPPLIER Cangzhou Zhongtuo International Trade Co., Ltd.

TEL:+86 3175206885

Omega 63 Light Keel Roll Forming MachineINFORMATION

Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness: 0.4mm- 0.6 mm

Formed width: 63mm

Material hardness: 5 50 mpa---350 mpa

Forming speed: 20 m/min

Technological process<

Uncoiler-feeding system-roll forming machine-cutting system-table

Uncoiler system

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity: 15 00kg

Uncoiling width: 300 mm

Inner diameter: 4 50- 5 50 mm

Light Keel Roll Forming Machine

Entry Beach

Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Main Roll Forming System

Feature : Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Length of the main part: about 30 00
Weight of main part: 3000 kg

Voltage : 380 V/50HZ 3Phase or as your required

Roller fixer : middle plate

Frame : 450 H steel welded

Drive mode: gear
Frame thickness:30mm

Material of rollers: GCr12MoV , surface hard chromium plating.

Material of shafts: 45# steel with tempering

Diameter of shafts:4 0mm

Number of rollers : 10 rollers

Main power: 3 kw

Shearing Mechanism

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components:It contains one set of blade , one hydraulic tank and one cutter machine.

Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Power: 5.5 kw

Hydraulic oil: 4 6 #

Electric Control System
Feature:

  1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

  2. Other electric element are Panasonic

Counter

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

Products receiving tables

It adopts welded steel and supported roller to transmit the products.

Accessories

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

  1. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

Payment terms

Price:

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery: within 45 working days after receipt of deposit.

Warranty

  1. One year, and we will provide the technical support for the whole life.

  2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

  3. Need one technician

  4. Training time: one week (contains the time of installation and adjustment)
