Heavy Gauge Galvanized Steel Metal Stud & Track Machine Drywall Stud Roll Former Steel Framing Rollformer

Heavy gauge metal studs and tracks are used in load bearing walls and structural applications such as exterior walls. Light gauge metal studs are used in non-load bearing applications such as some interior walls, half-walls, and partitions.

Cangzhou zhongtuo roll forming machine company can produce all kinds of fully automatic studs and tracks roll formers from low speed to high speed. You can tell us your budget and what sizes of studs and tracks you want to produce, then we give you some advice.

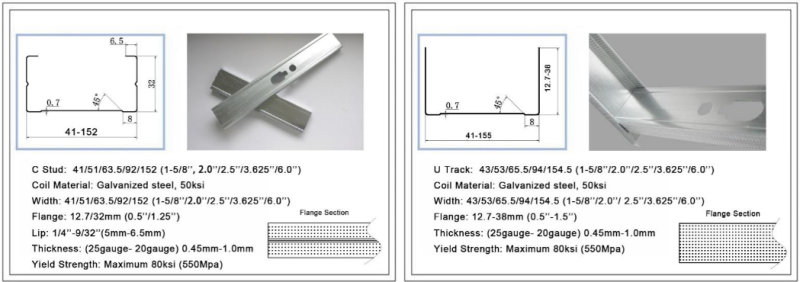

Popular drawing in US and Canada for your reference:

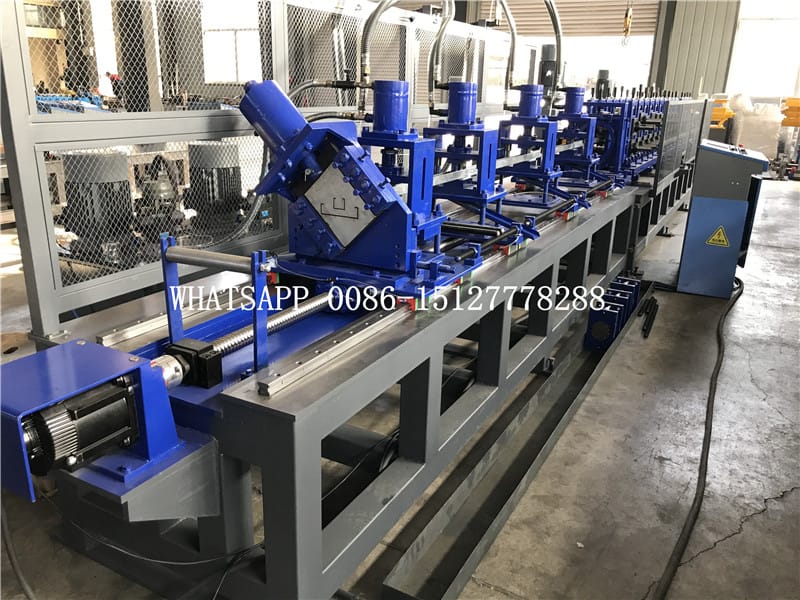

Automatic stud and track rolling forming machine design:

Drywall Metal Stud And Track Making Machine Production Process:

Material Coil - Decoiling - Roll Forming (- Flying Punching) - Flying Cutting Off - Finished Profile.


NO.

Equipment

Specification

Qty.

1

Manual Decoiler

 (1) Inner Diameter: Ø 460 - 510 MM

 (2) Loading Capacity: 1000 KGS

 (3) Manual Operating Type: Manual Expansion To Tighten The Coil

1 Unit

2

Roll Forming Machine

 (1) Quantity Of Rollers: 12 Groups

 (2) Roller’s Material: Cr12 Steel, Heat Treatment, Quenched

 (3) Roller’s Surface Treatment: Polished

 (4) Roller’s Main Shaft: Ø 40 MM, 40 Cr Steel, Quenched & Heat Treatment

 (5) Bearing: HRB Bearing, Best In China

 (6) Machine Side Wall: 25 MM

 (7) Machine Base: Welded By 80 Square Pipe

 (8) Driving Method: Chain & Gear Or Gearbox

 (9) Coolant System: Equipped

1 Unit

3

Flying Cut-Off Device

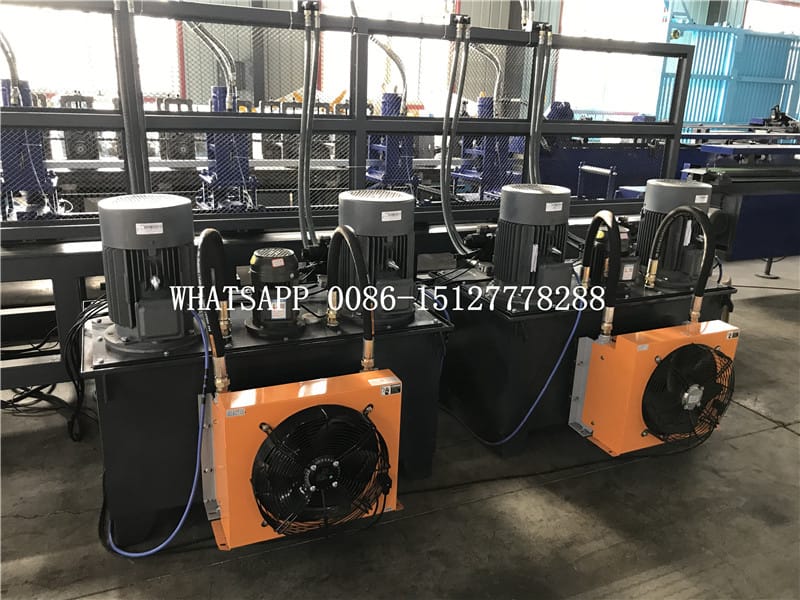

 (1) Hydraulic Pump Stand: 1 Set, Auto Start / Stop

 (2) Hydraulic Cut Modular: 1 Set

 (3) Modular Material: Cr12Mov (CN Standard) / SKD11 (JP Standard)

 (4) Length Tolerance: ± 1.0 MM

 (5) TBI Linear Guideway & Ball Screws: 1 Set

 (6) Hydraulic Components: Taiwanese

 (7) Hydraulic Overload Protection Setting: Maxi. & Mini. Pressure, Pump Stand & Forming Machine Stops & Starts, With Wind Coolant System, Filter Function

1 Unit

4

 Run-Out Table

/

1 Set

5

Control System

 (1) Controller: Motion Tracing Controller, Single Axis

 (2) Touchable Screen: 7” Color Screen, WEINVIEW

 (3) Encoder: Omron, Japanese

 (4) Button / Knob: Schneider, France

 (5) Speed Control: Frequency Converter

 (6) Power Supplier: 380 V, 50 HZ, 3 Phs; Customized

1 Set



Note:

1) There is hand wheel on the feeding part, easy for you adjust the feeding size when produce different sizes of products

2) There is also guiding device, easy for the material go into the machine smoothly and quickly.

3) Please check the yellow box, there is oil drip device on the feeding part, it can make oils on the products, in case the finished studs are rust.

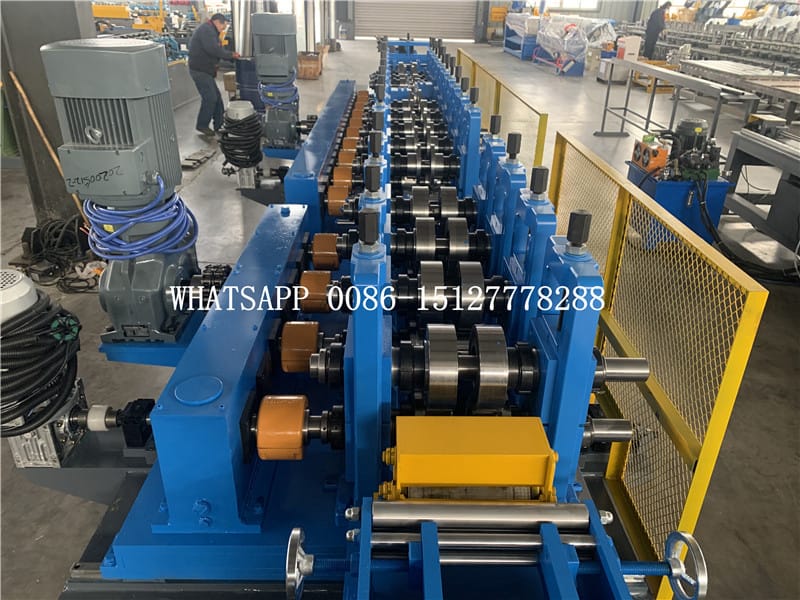

We use split rollers to realize one machine to produce different sizes of drywall studs, you can adjust the size automatically by PLC

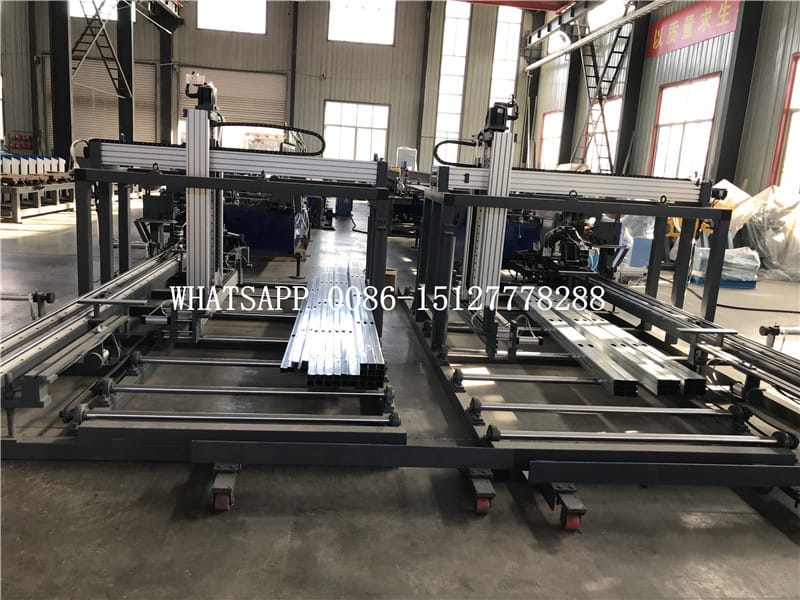

If you want to save labor, you can choose below automatic strapping and bundling device.

Drywall stud machine (2).jpg

For more information about this full line, welcome to contact me by below contact:
