Solar Photovoltaic Support Rolling Machine

Double-in-roll c-shaped steel photovoltaic bracket is mainly applicable to the ground photovoltaic power station and concrete flat.roof photovoltaic power station.The bracket has a strong adjustable ability, high structural strength, beautful shape, standardbending angle, accurate hole position, straight angle, accurate size,complete specifications, and economical price, which canmeet most of the needs of customers. Double-in-roll c-shaped steel is a special C profile steel. It can also be used for kinds ofshelves, ceiling frames, drywall partition, steel structure building, and so on.

Features and Advantages of Solar Photovoltaic Support Rolling Machine

1. Fully automatic continuous Solar Photovoltaic Support roll forming machine for both heavy and light duty use.

2. Adopts changing spacers to make multi sizes profiles sections.

3.lnline flexible punching system integrated.

4.Pre-cutting and Post cutting is optional:

5.lf need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes.

6.lf profile sizes are not so many, post cutting can improve profile quality greatly.

7.Forming speed: 12-15 m/min

8.Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

9.Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

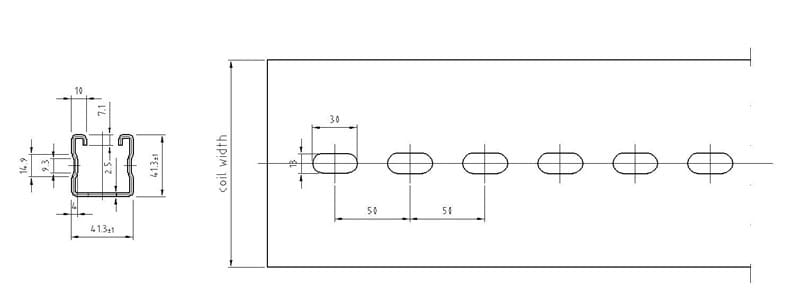

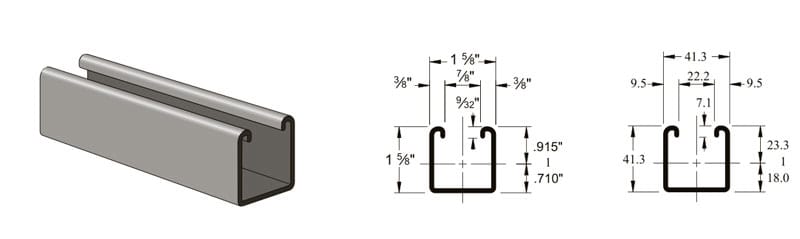

Drawing Profiles

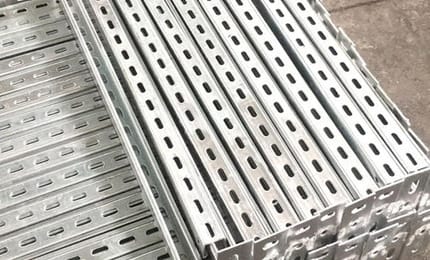

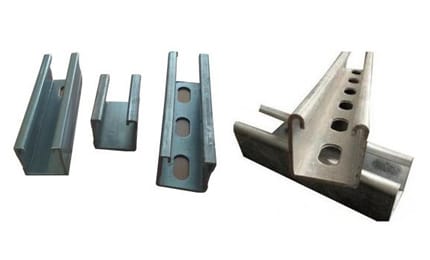

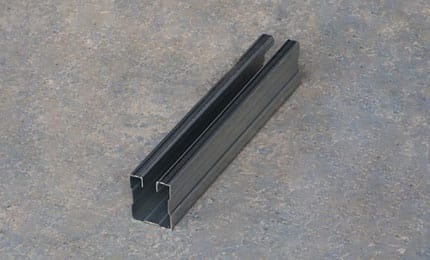

Finished Products

Working Flow

Pre-cutting flow:

Decoiler (passivelauto)→ Feeding and Guiding Table →leveling system → hole punching system (as profile requests)→ pre-cutting to length →Roll Forming System → Output Manual SupporterI Auto Stacker(optional)

Post-cutting flow:

Deciler (passivelauto)→Feeding and Guiding Table →leveling system → hole punching system (as profile requests)→ RollForming System → Post-Cutting to length (Hydraulic)→Output Manual Supporter lAuto Stacker(optional)

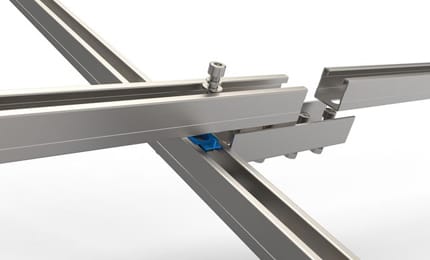

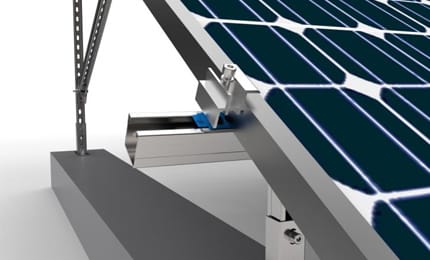

lnstallation

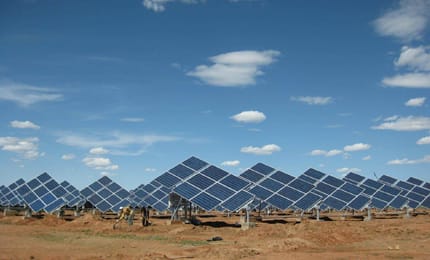

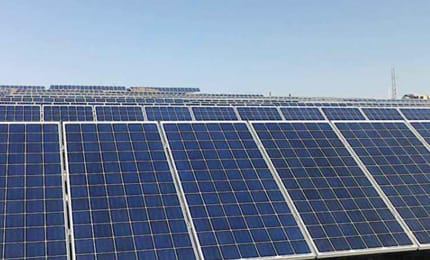

Solar Photovoltaic Support Rolling Machine Application

As the features of green, solid, economical, durable, fast & easy to install and good looking, double-in-roll c-shaped steelphotovoltaic bracket and other steel building materials are used more and more widely.

lt suits for various light steel structure construction, kinds of shelves, ceiling frame and so on.

Technical Parameters of Double Inner Coil C-shaped Steel Photovoltaic Support

1.Installation location: ground or flat concrete roof

2.Main material: hot dip galvanized carbon steel3.Design wind pressure: 0.55kN/m ^ 2

4.Design snow pressure: 0.5kN/m squared5.Service life: 30 years

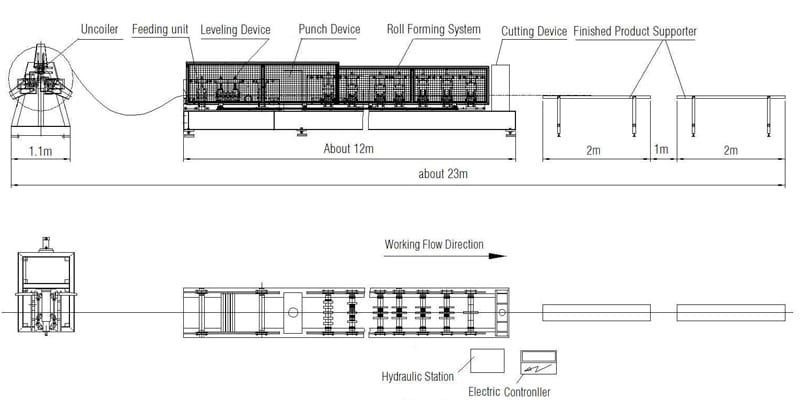

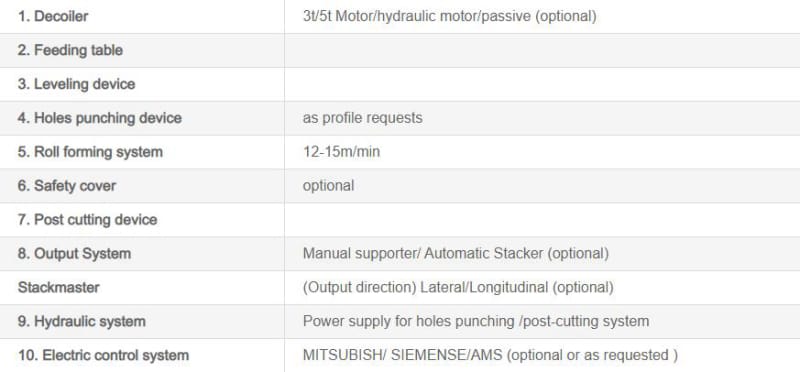

Production Line Components and Parameters

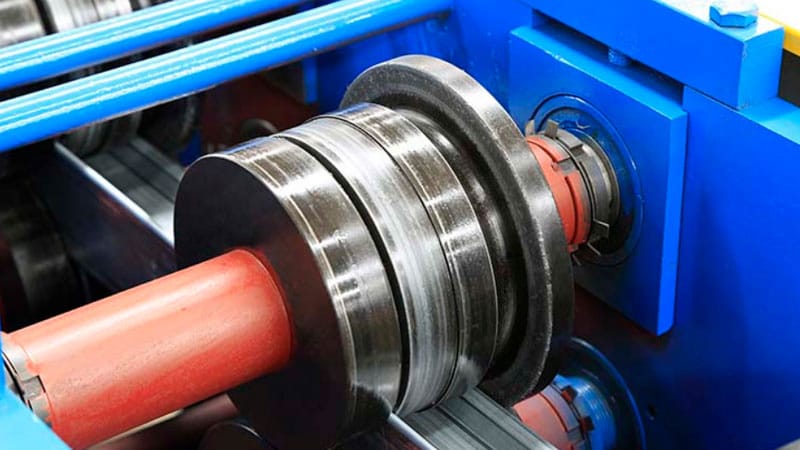

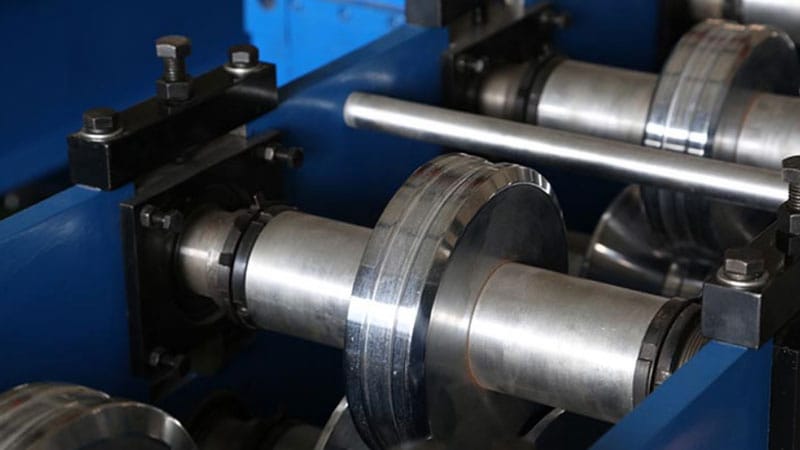

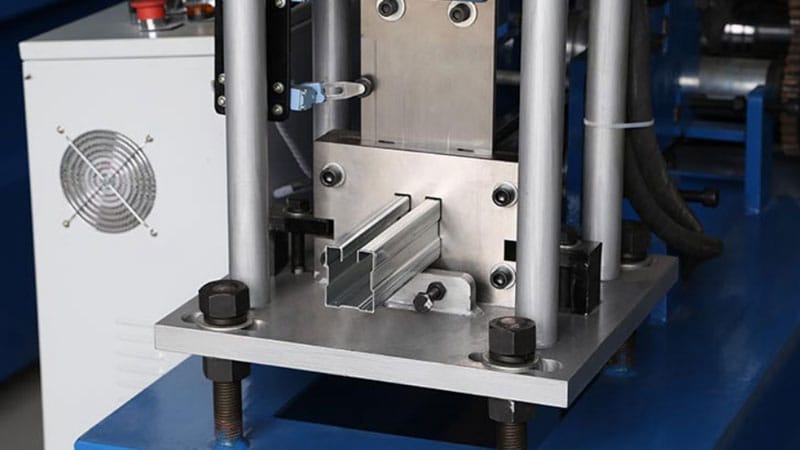

More machine pictures
