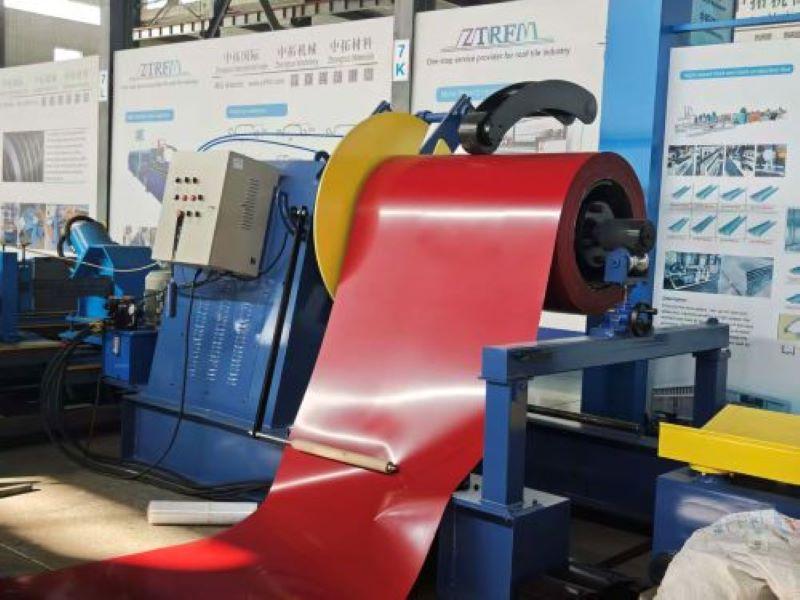

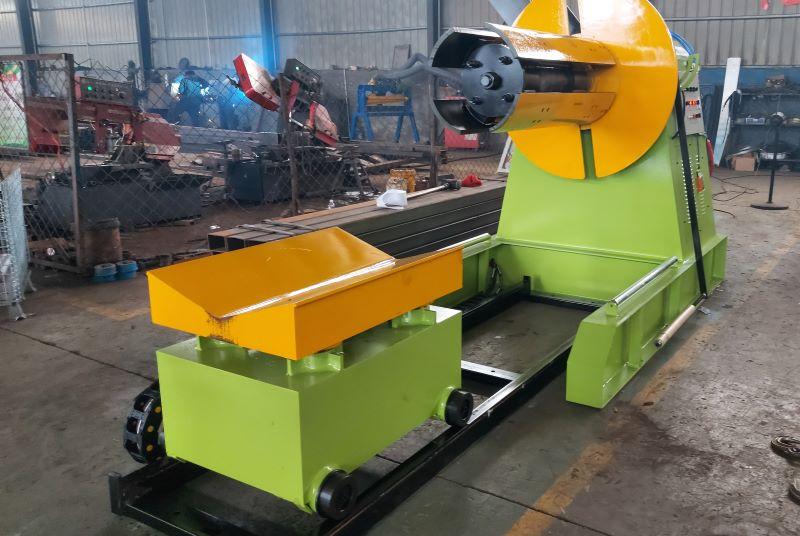

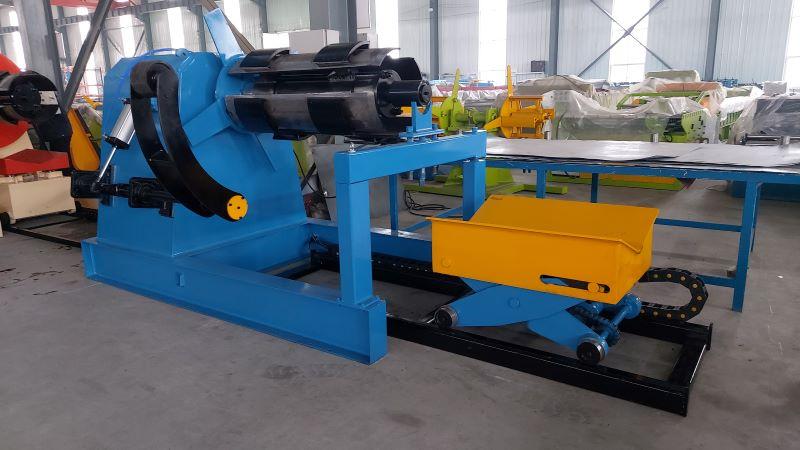

This hydraulic uncoiler is the core front-end equipment in metal sheet processing. It is mainly used for the automatic uncoiling, tensioning, and feeding of heavy steel coils such as cold-rolled plates and galvanized plates. By wirelessly controlling the hydraulic loading car, workers can easily import the steel coils into the expansion cylinder, significantly reducing the labor intensity of manual operations. Its unique slider-type tensioning structure ensures the roundness of the inner core and does not damage the steel coils, providing a flat raw material for subsequent leveling and processing.

Production Line Application

This uncoiler has extremely strong compatibility and is widely used in the following production lines:

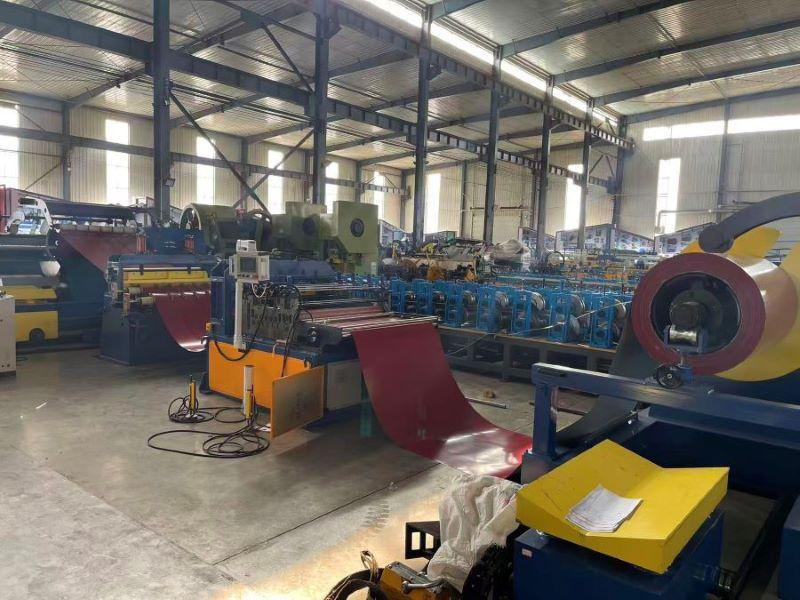

Hydraulic Slitting Line: As the decoiler unit of the longitudinal shearing line, it is combined with the longitudinal shearing machine and the winding machine to achieve automatic steel strip separation.

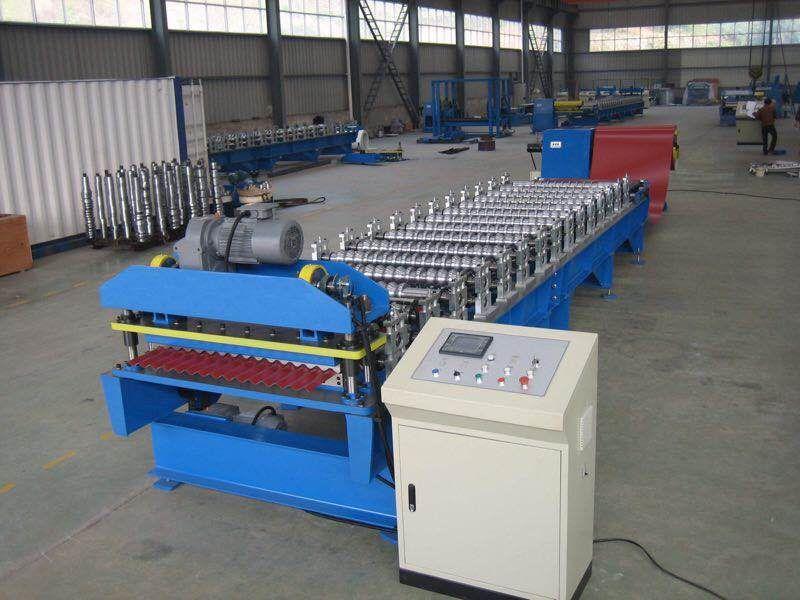

Roll Forming Machine: Provides continuous material supply for the production line, and is combined with the feeding machine and the leveling machine to achieve automated production.

Core Advantage

Heavy-duty design: The main frame is made by welding 300H steel (non-standard) and 14mm thick steel plates, ensuring a stable base.

Hydraulic tensioning: It uses a slider type tensioning mechanism, with a smooth inner core, which does not damage the steel coil, and has a large and stable tensioning force.

Pneumatic press arm: Equipped with pneumatic brakes and press arms, it matches the speed of the forming machine better, preventing the steel coil from unraveling during operation.

Frequency control: Uses a Delta frequency converter (5.5kw), allowing for arbitrary speed adjustment, and has a high level of automation.

Technical Specifications

Why Choose Us

Stable and reliable: The load-bearing main shaft is made of high-strength thick-walled seamless steel tubes, which are processed by turning. It has strong power and can bear a large load.

Convenient operation: Equipped with a wireless remote controller, the operation is more convenient. It can be remotely controlled to raise and lower the trolley and move forward.

Precise control: The electrical control system uses control components from companies such as CHINT and Delixi, which have high precision and good automation level.

Easy maintenance: Key components such as hydraulic cylinders and frequency converters use well-known brands, resulting in low maintenance costs.

Please scan the image below or contact us directly via the details provided:
