Hot in Peru Roller Shutter Door Roll Forming Machine

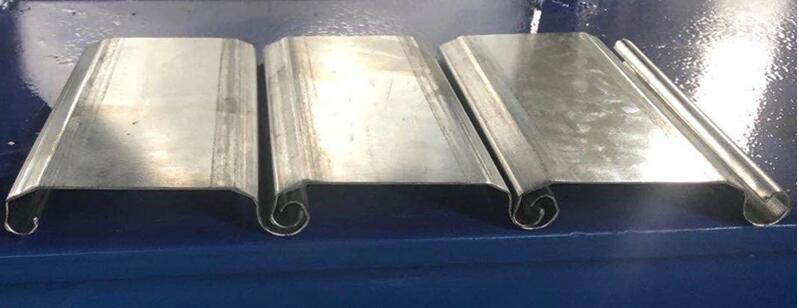

Hot in Peru Roller Shutter Door Roll Forming Machine is the most popular type of roll forming machines. It makes different shape of roller shutter door slat, which is used in the construction of various roller shutter door, industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel . It has beautiful design, and widely used in all over the world.
We adopt export standard technical solution to make machine strong and stable enough.
Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.

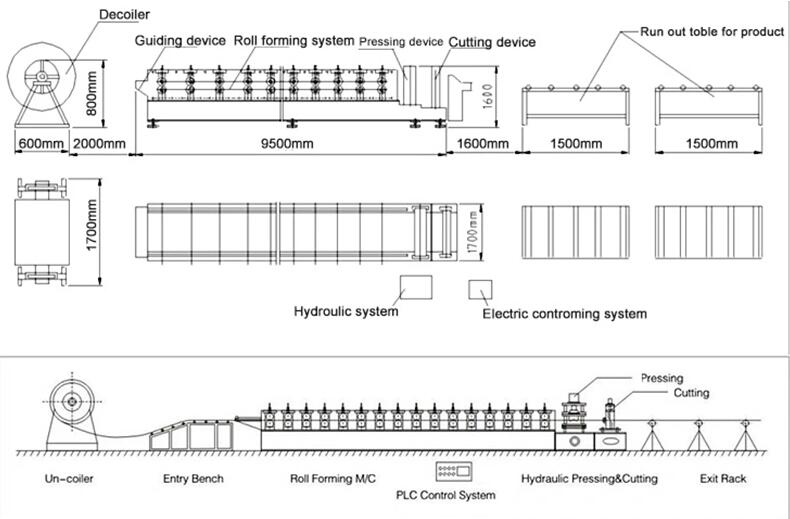

1. Production Process Diagram:
Uncoiling --- Feeding --- Roll Forming --- PLC Controlling --- Hydraulic Cutting (Punching)--- Receiving
2. Main Technical Specifications:
Name | Hot in Peru Roller Shutter Door Roll Forming Machine | |
Raw Material | Material | Aluminium PPGI PPGL GI GL |
Width | 150mm | |
Thickness | 0.7-1.0mm, customized | |
Power Required | Power | 380V 3Phase 50Hz, customized |
Main Motor | 5.5KW, Lichao, Shanghai/Siemens Brand | |
Cutting Motor | 3.0KW, Lichao, Shanghai/Siemens Brand | |
Roll Forming Machine | Support Frame | Square tube frame welded |
Forming Station | 12 rows+3 Straighting rollers, exactly according to profile drawing | |
Structure | 16mm | |
Shaft | 45# high grade steel, 50mm, solid | |
Roller | 45# high grade steel with heat treatment, hard chrome plated | |
Transmission | Gear | |
Bearing | Standard | |
Speed | 8-12m/min | |
Electric Components | Delta / Siemens / Mitsubishi | |
Cutting Blade | Cr12Mov, quenched 58°-62° | |
Operation | Touch Screen | |
Dimension | 5.7*0.85*1.3M | |
Weight | 2.4T | |
We also provide Safety Shield, Hydraulic decoiler, Automatic stacker for your better operation. It can save labor, save cost and can guarantee your production line more safer. Above all, it can improve your work efficiency !

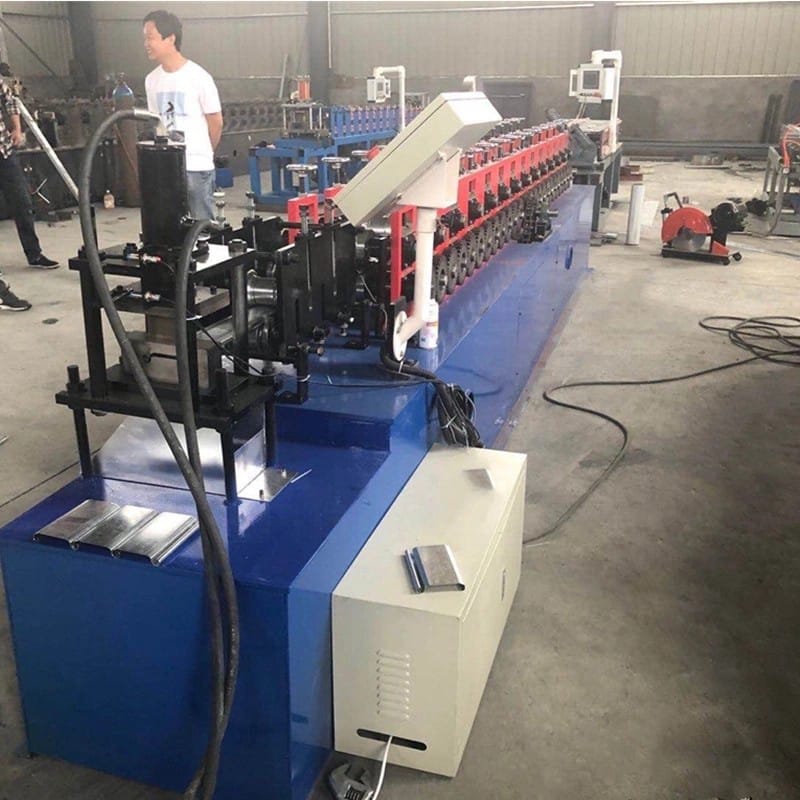

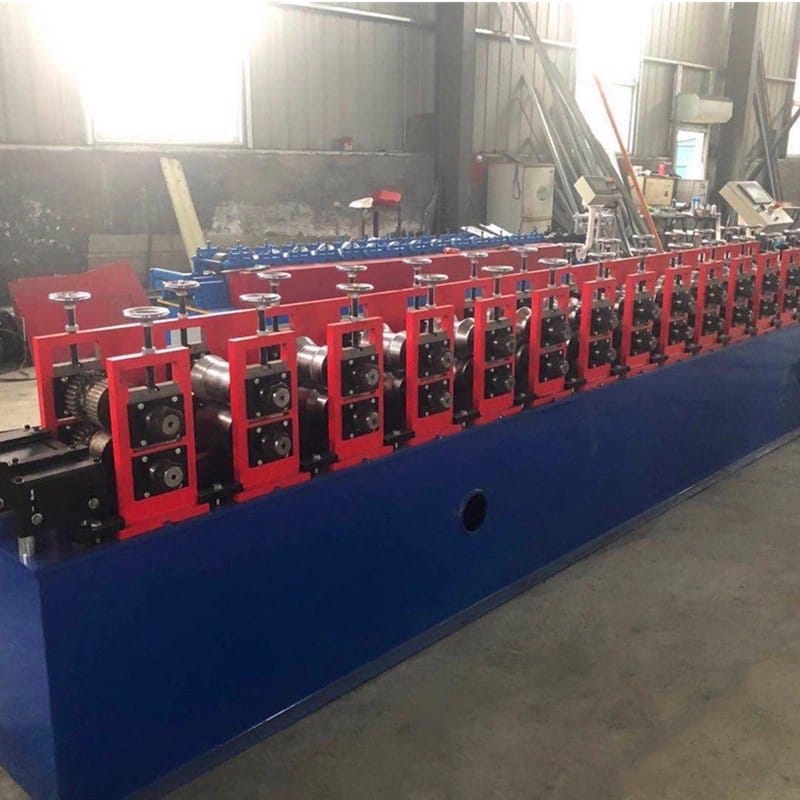

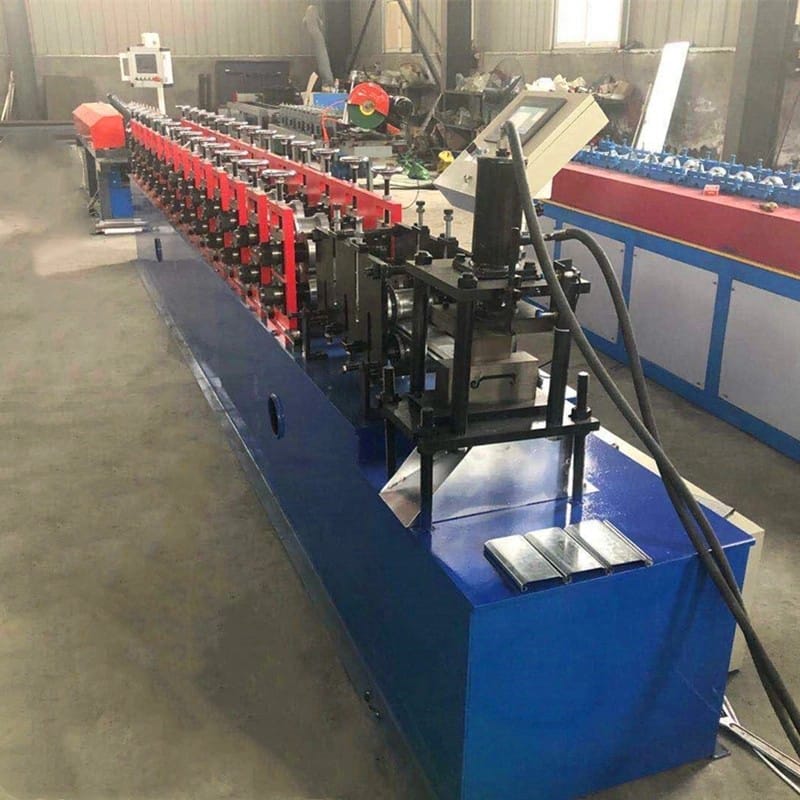

3. Pictures of Roll Forming Machine:
