Metal roof sheet machine

Rain water gutter machine roof gutter making machine aluminium gutter roll forming machine

Rain water gutter machine roof gutter making machine aluminium gutter roll forming machineMetalGutterRoll FormingMachineProfile can produce a variety of style. Downpipe is bridge letwaterpass fromgutterto a local stormwater. Cangzhou zhongtuo is professional on produce all kinds of water gutter machines and got many positive feedbacks.1. The advantage ofwater gutter cold roll forming machinegutter cold roll forming machinecan bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all ...

   Inquire


Rain water gutter machine roof gutter making machine aluminium gutter roll forming machine


Metal Gutter Roll Forming Machine Profile can produce a variety of style. Downpipe is bridge let water pass from gutter to a local stormwater. Cangzhou zhongtuo is professional on produce all kinds of water gutter machines and got many positive feedbacks.


1. The advantage of  water gutter  cold roll forming machine

gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
2.Main parameter of   water gutter  cold roll forming equipment

No.

main parameter of gutter roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

200-600mm

3

Rollers

14-16rows

4

Dimensions

8.6*0.8*1.2m

5

Power

4+3kw

6

Thickness of the plate

0.3-0.8mm

7

Productivity

8-12m/min

8

Diameter of the roller

52mm

9

Weight

About 4.5 T

10

Voltage

380V 50Hz 3phases

11

Rolling material

Carbon Steel 45#

12

Material of the cutting plate

Cr12

13

Processing precision

Within 1.00mm

14

Control system

PLC control

15

Side panel of machine

14mm

16

Main structure of the machine

300 H steel

17

Weight

About 4.5 T

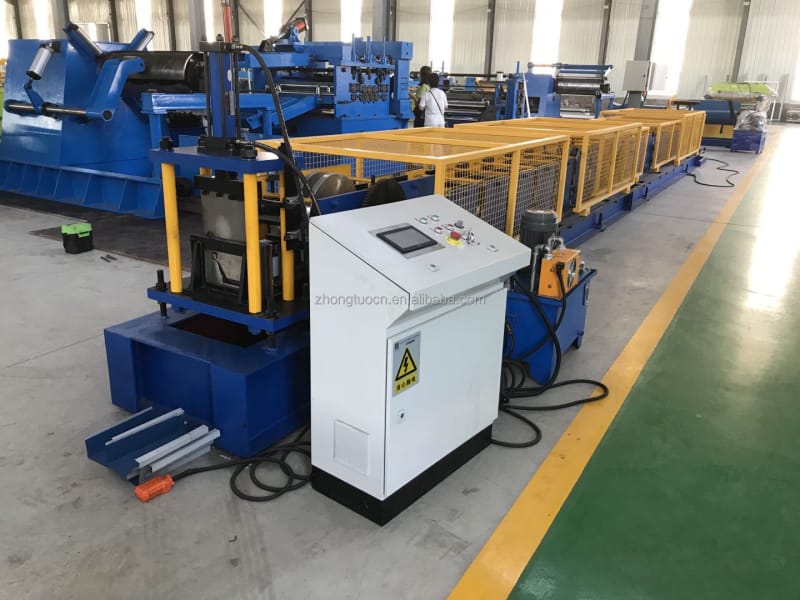

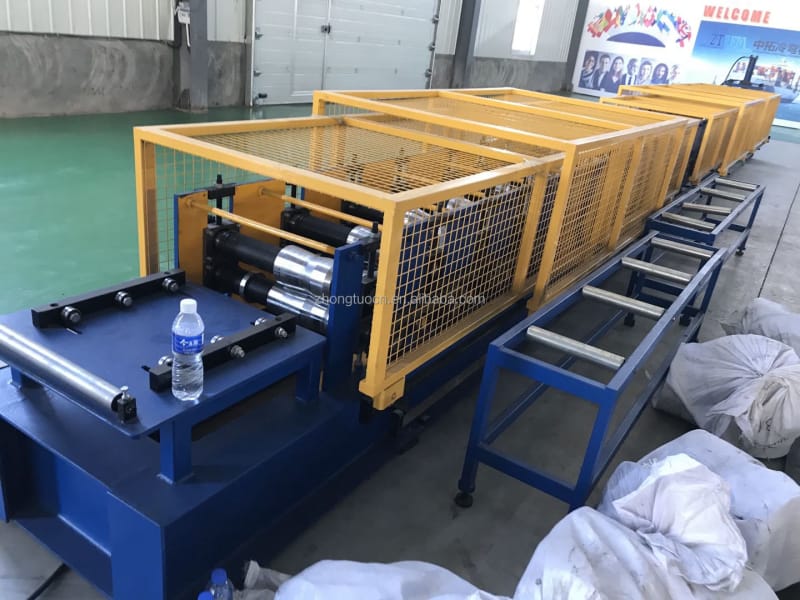

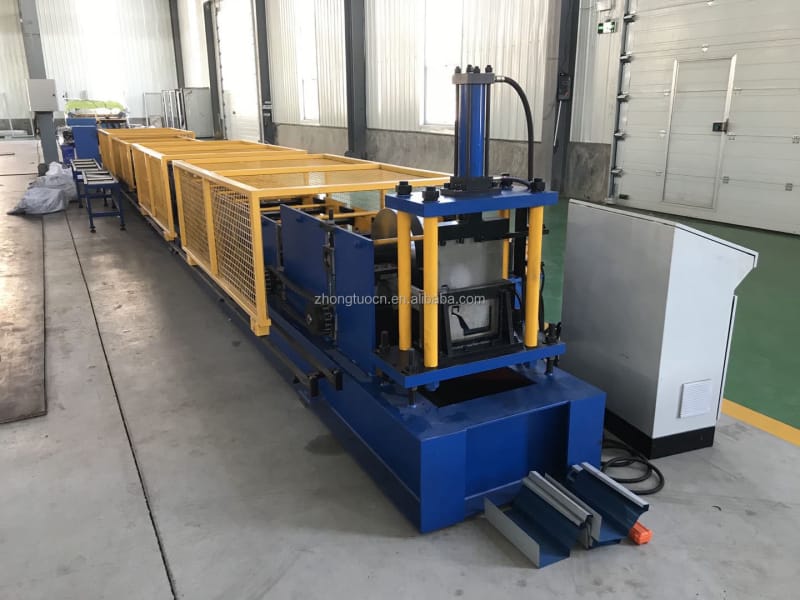

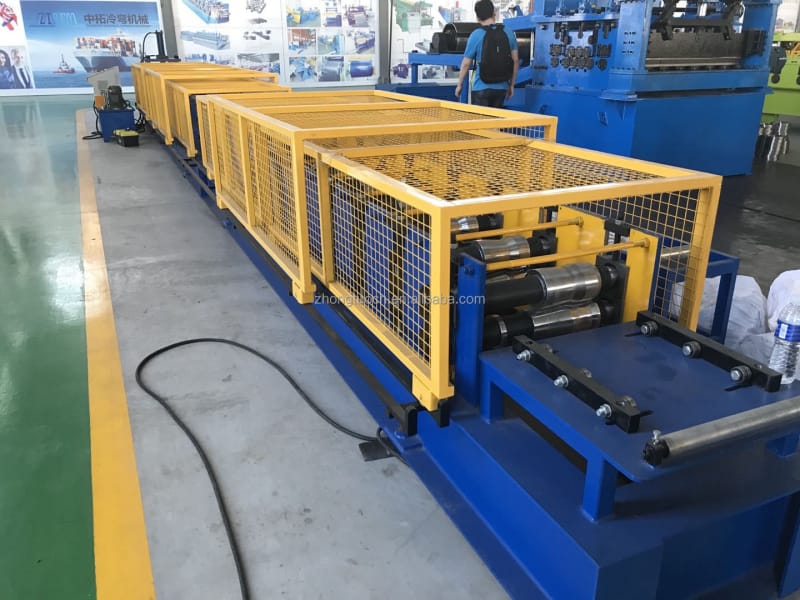

3. some pictures of    water gutter  cold metal sheet roll forming machine
