10 ton hydraulic decoiler with turnover loading car uncoiler machine with upbender for American market

Decoiler is a secondary and necessary device for the roll forming machine. There are several types such as manual decoiler, electric decoiler and hydraulic decoiler. From function, there are single head decoiler, also double head decoiler. From weight, there are 3T decoiler, 5T decoiler, 7/8Ton decoiler and 10/12/15/20 Ton decoiler. You can choose the one according to your own requirement.

For manual decoiler, there is no power, it is moved passively by the roll forming machine.

For electric decoiler, actually we not advise it, because for high quality and good performance one, the price is not quite lower than hydraulic decoiler. So from economic side, better to choose hydraulic one or manual one.

For hydraulic decoiler, It is include upbender, loading car, pressing arm, ground sensor, hydraulic pump station, remote control, Emergency button and control box

An advantage of our Upender models is low maintenance and high durability.

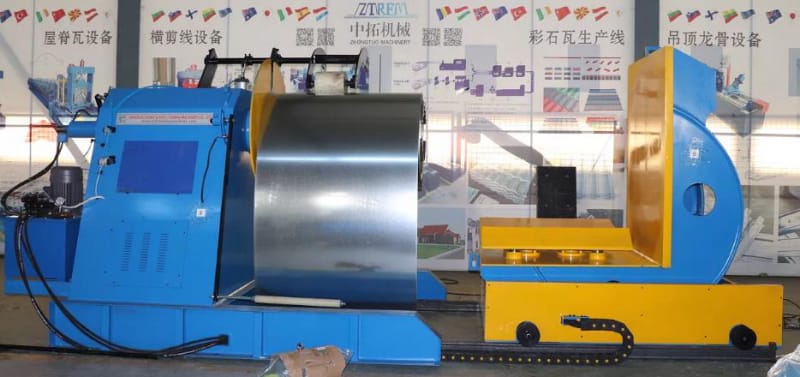

1. The Upender adopts automatic hydraulic system to take the coil to coil car, it is easy and safe way to transition from a horizontal to vertical (and back) orientation to load coil on the mandrel or cradle uncoiler. It is also powered from the hydraulic decoiler and controlled by coil loading car.

1) Skidded Coil is Loaded onto Horizontal Platform

2) The Platform is Rotated 90 degrees vertically onto loading car

3) Coil is Raised and Lowered to fed into the decoiler mandrel, align with decoiler mandrel (Skid is Removed)

2. Coil loading car, the min height that can be lowered is 540mm, and the max height is 925mm. If you have special requirements, please tell us in advance.

Function: It is used to lift up and down, move forward and back to make it easy to load the coils on decoiler. Hydraulic controls lifting, motor drives level moving. The car is controlled on the auxiliary control panel. Its moving speed is 6-7 m/min. When coils on decoiler, car will return back to the start position. It can also carry back the unfinished coils from decoiler.

3. The mandrel has four segments, it is more strong than three segments, make the power more evenly on each part, and can be use for long time.

4. For the frame of our decoiler, it is a whole part, different with the other factories design, to make sure the machine can work more steady than others.

5. The pressing arm, pressing material

6. For ground sensor, it is used to prevents stacking coils on the floor. When the coils feeding into the roll forming machine, there will be lots of coils on the floor, then the decoiler will stop sending coils into the roll forming machine automatically.

7. With remote control you can control the decoiler working in far distance.

8. For common decoilers, there are four pillars, the disadvantage is the lift distance is smaller. But for ours, the lift distance is more big, when your coils is small, the inner diameter is small, it is hard for you to lift the small coil into the mandrel, but for ours, with this hydraulic cylinder, it can lift the small coils in to the mandrel very easily.

9. Automatic center position function, you can see there is slider at here, you can move here, to make the decoiler in the center of the roll forming machine, so when it is not in the center, you no need to move the decoiler or move the roll forming machine.

10. There is servo motor, also with pneumatic brake system, when you meet any emergency, it can stop at once.

11. For the control system, we can do English, Spanish, France and other languages for you.

Working video of hydraulic decoiler with turnover loading car uncoiler machine with upbender

https://www.youtube.com/watch?v=XPHPZX98lDM
