Heavy Duty 3.5×1600 Hydraulic Steel Coil Slitting Complete Line

Our 3.5×1600 hydraulic slitting line is professionally designed for longitudinal slitting processing of CRS cold rolled steel coils and GI galvanized steel coils. With stable structural design and mature hydraulic technology, this whole production line can withstand long-hour continuous operation, and brings reliable qualified finished strips for metal processing factories.This line adapts steel thickness from 0.3mm to 3.5mm, raw coil width ranges 500–1600mm. Adjustable running speed stays 0–60m/min, adopts standard 380V/60Hz/3Ph power supply, total installed capacity around 220Kw. The entire production line occupies 23m×8m workshop space, and achieves steady daily output of around 40T w...

Inquire

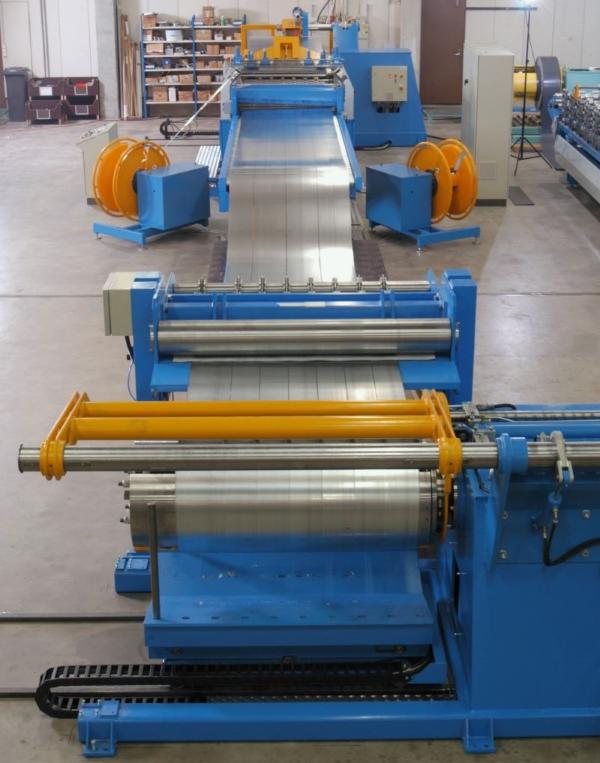

coil slitting machine line1

This line adapts steel thickness from 0.3mm to 3.5mm, raw coil width ranges 500–1600mm. Adjustable running speed stays 0–60m/min, adopts standard 380V/60Hz/3Ph power supply, total installed capacity around 220Kw. The entire production line occupies 23m×8m workshop space, and achieves steady daily output of around 40T within 8 working hours. Slitting width tolerance can be strictly controlled within ≤±0.05mm.

Whole Production Process

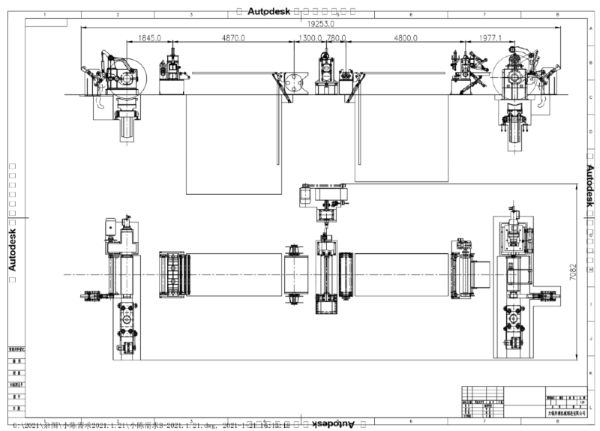

Overflow

Line runs from right to left:

Entry coil car → Hydraulic decoiler → Press and pinch device → Hydraulic cutter → Looper 1 → Side guide device → Slitter → Scrap winder → Looper 2 → Tension stand → Recoiler → Exit coil car

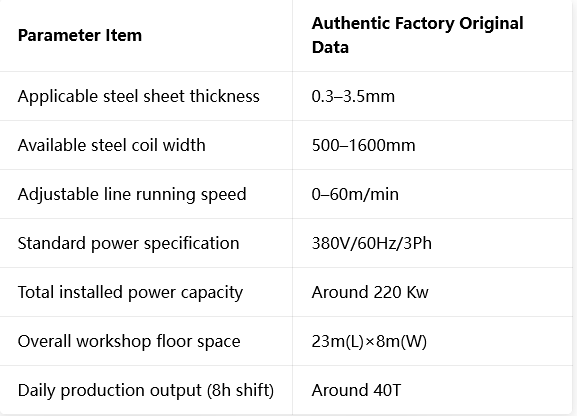

Core Concise Parameters

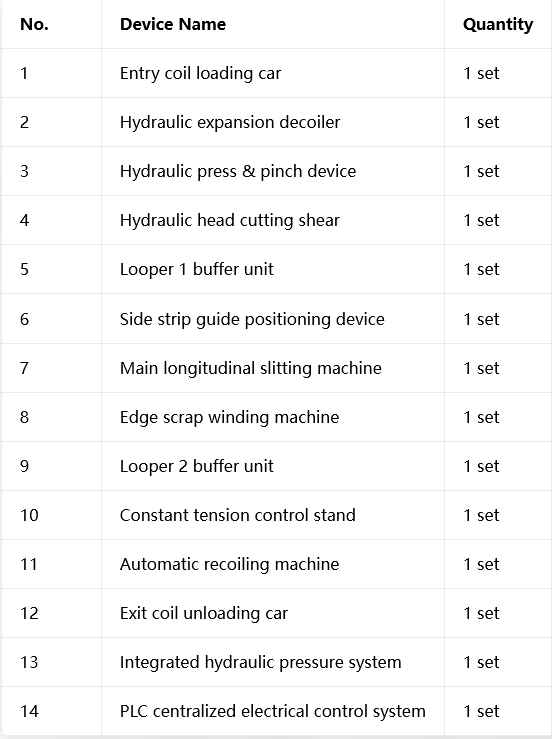

Full Standard Device Configuration

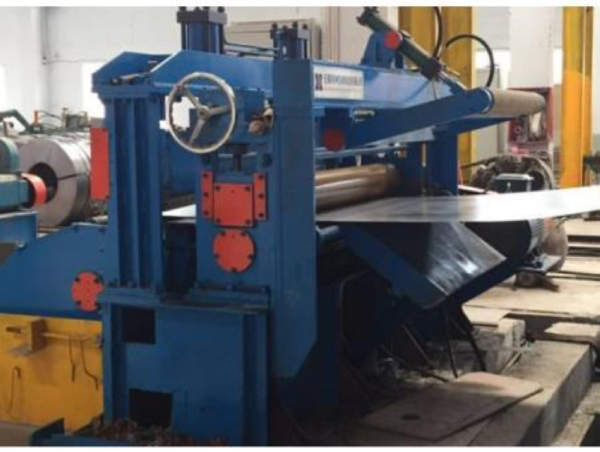

The slitting host adopts 75KW AC variable frequency driving motor, matched with high-performance cycloidal pinwheel reducer. It supports switchable active shear and tension shear modes to fit different thickness steel materials perfectly. Precise side guide assembly restrains strip jumping and offset, maintaining outstanding slitting precision all the time.

Whole line adopts PLC frequency conversion synchronous control. Operators can easily adjust high & low running speed, and finish manual strip threading smoothly, which makes daily workshop operation very convenient and easy to master.

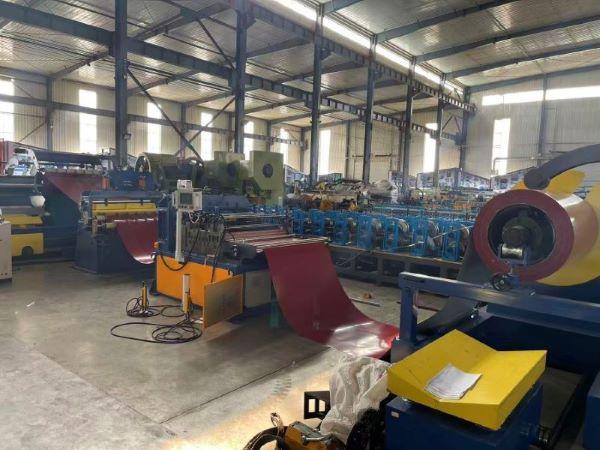

Hydraulic slitting line

With reliable overall quality and reasonable matching configuration, this hydraulic slitting line becomes ideal long-term production equipment for steel coil processing factories, bringing stable yield and low maintenance cost for continuous business development.
