Furring Hat channel roll forming machine

Description

The Ω-shaped steel frame is made of high-quality hot-dip galvanized steel coils and rolled into one-time forming by professional rolling equipment.

Advantage

1. The appearance is beautiful and modern, the overall structure is stronger, and the load-bearing capacity is far greater than the previous steel pipe.

2. The unique "several" arch purlin structure effectively solves the dripping phenomenon caused by the temperature difference between the inside and outside of the greenhouse, and can effectively solve the problem of condensation in the greenhouse in winter.

3. The skeleton is all produced by styling equipment, easy to install, no solder joints, and will not rust for a long time.

4. There is no need for pillars in the middle of the span frame within 10 meters, which greatly increases the farming area, saves labor, and increases work efficiency. 5. The hot-dip galvanized steel plate has good corrosion resistance and longer life. The normal service life is no less than 15 years.

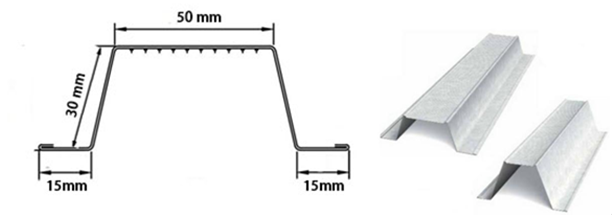

Drawing profile for reference

Components of machine

1. Hydraulic decoiler (3t)

2. Main machine

3. Shearing system

4. Hydraulic station

5. PLC control system(Delta)

6. Ran out table

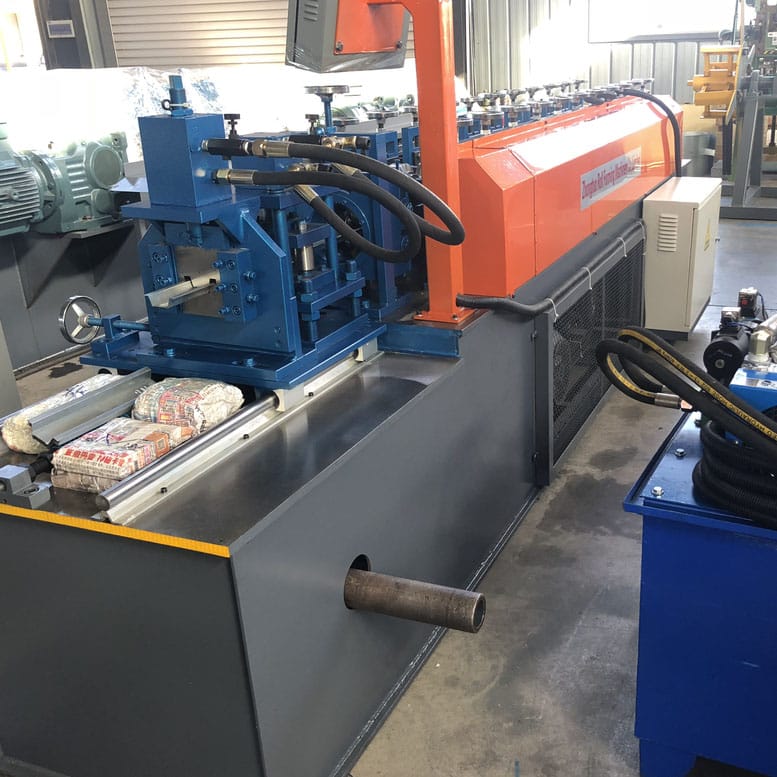

Picture of machine for reference

Size: 4300х800х1400Weight t: 2.2tons

Voltage:380V/50HZ3Phase(as customer’s request)

Roller fixer : Guide column
Frame : middle plate welded

Memorial arch frame typeFrame thickness:25mm

Drive mode: gearMaterial of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40mm
Number of rollers :13 rollers

Main power: 3kw
Cycloidal planetary gear speed reducer

 Shearing machine

Material of blades: Gcr12 quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch :  non-contact photoelectric switch

Electric Control

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

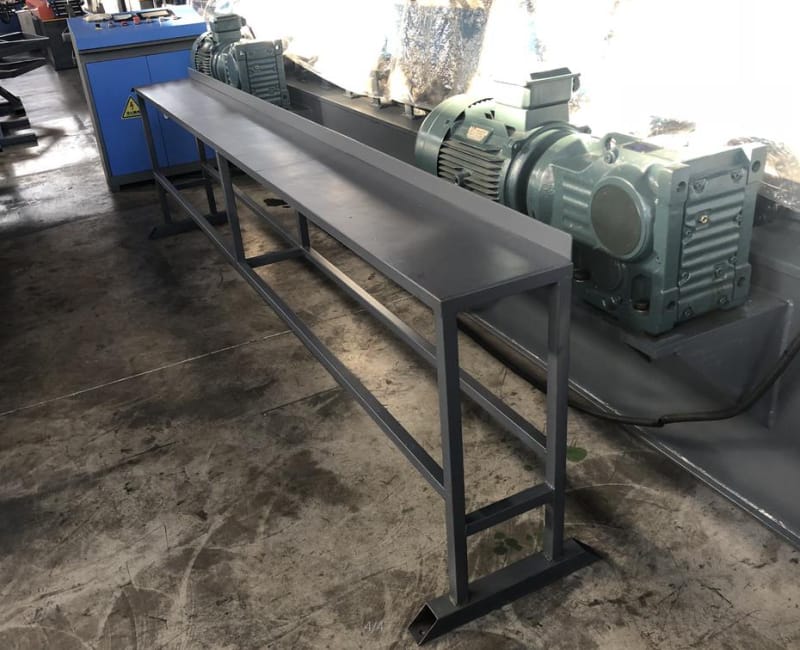

 Runout table

It adopts welded steel and supported roller to transmit the products.

Packaging Details:
1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time
Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
