Metal sheet embossing machine metal Checker plate embossing machine

A metal sheet embossing machine line is always required for the production of raised or sunken designs or relief in sheet metal continuously from unrolling or uncoiling, embossing and recoiling.

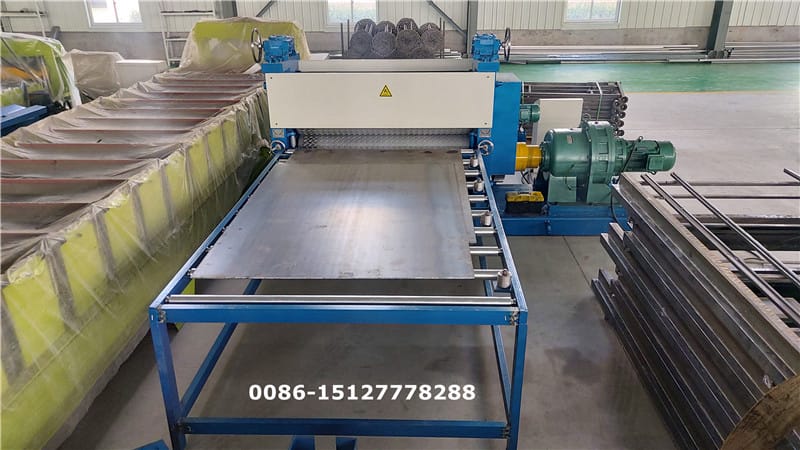

Metal sheet embossing machine is a stamping process to produce various designed patterns in sheet metal by passing the sheet in roll or a strip of metal between rolls of the desired patterns. Metal sheet or steel coil is fed into the male and female roller dies on a sheet metal embosser so that a pattern or a design will be engraved on the metal sheet.

Specification of metal sheet embosser

• Will emboss steel or aluminum

• Emboss Gutter coil, Emboss flashing material, Emboss siding material

• Rated for 26 gauge Steel 80ksi (sample pictures are 29g steel 80ksi)

• 48″ material width

• Speed 50 feet per minute

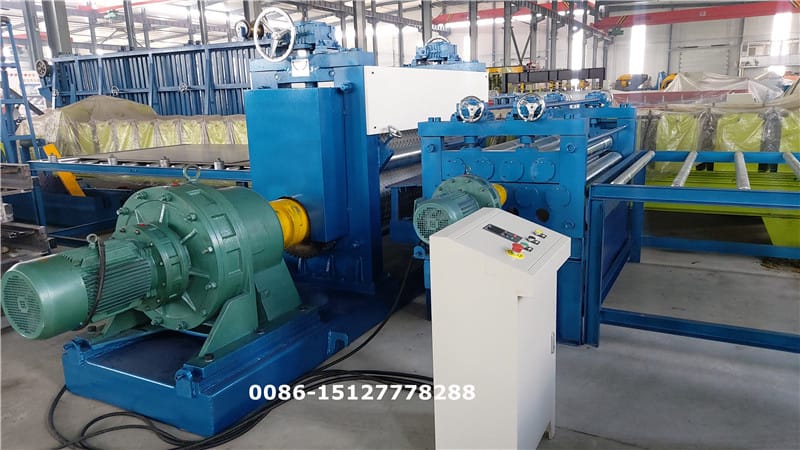

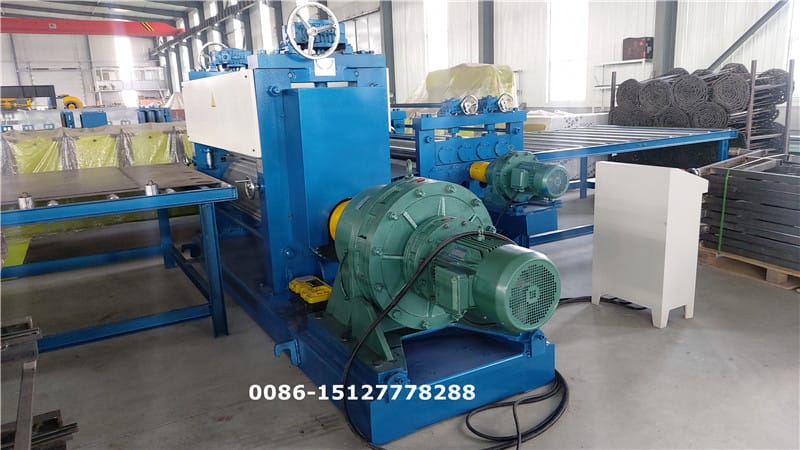

• 10 hp drive motor driven by a Variable Speed Frequency drive.

• Loop control proximity switch (the small blue box on floor in pictures)

• The embossing rolls are 11″ dia. material is SAE 5140

• The backup rolls are 12″ dia.

Youtube of metal sheet embossing machine: https://www.youtube.com/watch?v=3Q0xXLE2z9E&t=2s
