We made a full automatic machine for Brazil customer, the machine completed this month, and we tested the machine and here let me share the test report with you:

Customer personal requirement:

This machine can make products as below:

C purlin bottom width 75-200mm

U purlin bottom width 65-200mm

C purlin lip size 15-25mm

CU purlin height 30-80mm

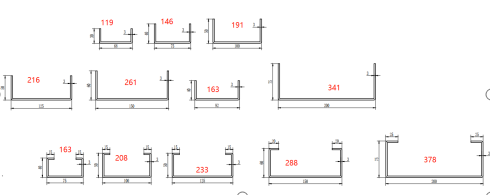

Above red number is the input material width for 3mm thickness

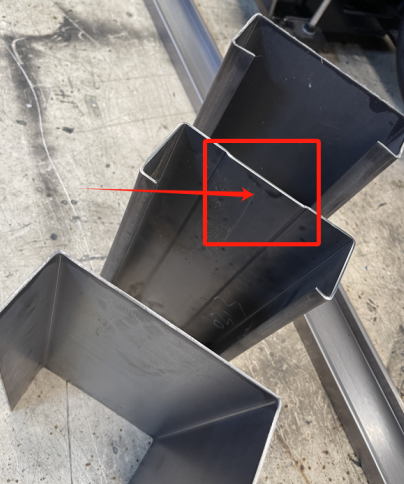

Our machine have function to make the rib on the bottom of the purlin, you can choose to use this rib forming function or do not use this rib function:

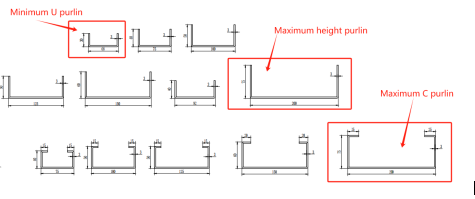

We tested 3 profiles to guarantee the machine is performance well:

As our experience if the below 3 profiles can make well then other profiles is no problem to make on the machine.

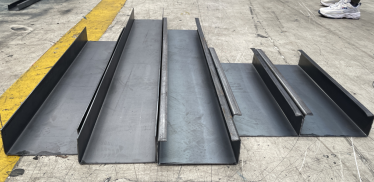

Results of the 3 profile testing:

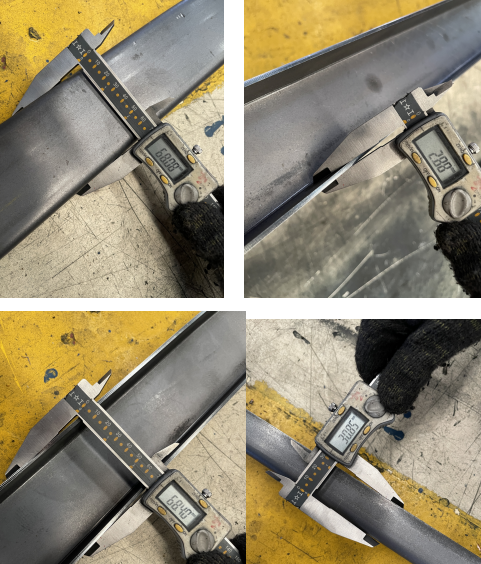

68x30x3.0mm U purlin:

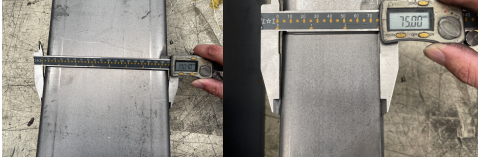

190x75x3.0mm U purlin:

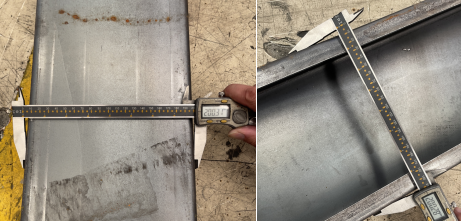

200x75x25x3.0mm C purlin:
