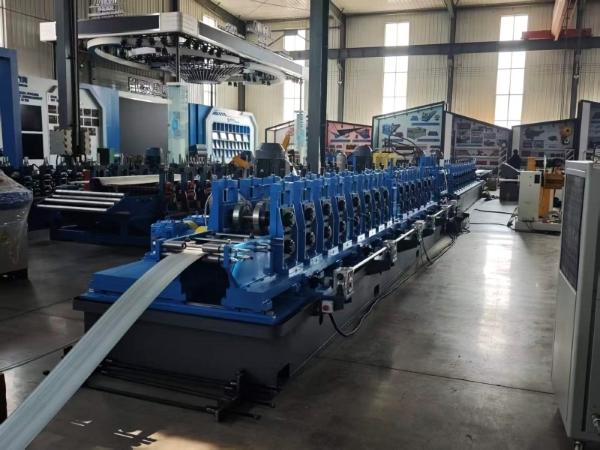

Highly integrated automatic C&Z purlin roll forming line reaches 0-32m/min speed without punching, 0-18m/min speed with hole punching. It fits Q195-Q355 galvanized & low carbon steel, adopts 380V 50Hz power supply, provides 1-year machine warranty and lifelong free remote technical support. Widely used in steel structure warehouses, industrial workshops and large-span building projects. All technical parameters are 100% authentic and verifiable.

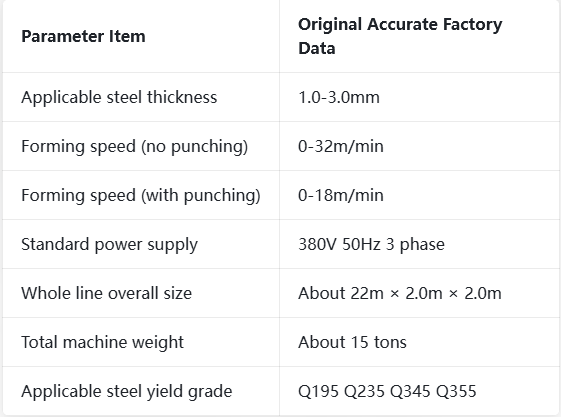

Core Customer Concern Technical Parameters

This whole production line supports freely adjustable C&Z purlin width 80-300mm, Z purlin width 120-300mm. It completes full automatic procedures from decoiling,leveling, punching, forming to cutting & stacking. Compact overall layout adapts standard workshop layout easily, keeps stable long-hour continuous production.

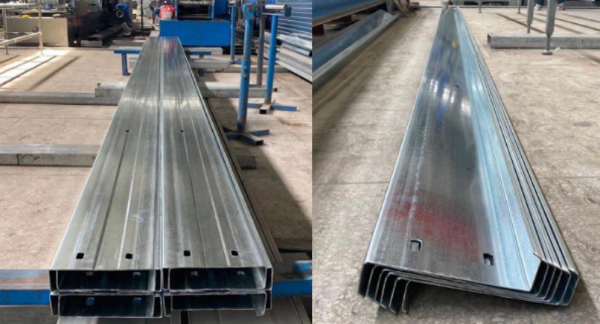

C&Z Purlin Profile Specification Display

C purlin adjustable width: 80-300mm

Z purlin adjustable width: 120-300mm

Flange size: 30-100mm, Lip size: 10-20mm

Standard punching holes: 14mm / 14×22mm / 14×25mm

Standard Production Working Flow

Decoiler unwinding → Steel strip feeding & leveling → Hydraulic automatic punching → Continuous roll forming → Hydraulic post-cutting sizing → Finished purlin automatic stacking

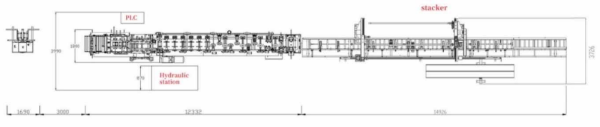

Full closed automatic process reduces manual operation greatly and ensures stable dimensional precision. Integrated structure shortens installation debugging period and helps machine put into production quickly.

Overall Advantages of the Production Line

1. All procedures are integrated into one line, realizing one-stop finished purlin production directly.Bilingual PLC touch screen realizes easy parameter adjustment, no professional operation skills needed.
2. High-rigidity H-beam frame resists heavy-load operation stably for long time.Free C/Z mode switching saves mold changing time and responds to diversified construction orders fast.
3. Low failure rate structure reduces daily maintenance cost obviously.Stable profile precision fully meets international building structure safety standards.
4. Professional high-flexibility purlin production line brings efficient stable output for global building material factories, helping customers expand market share and gain steady long-term profits.
